ANTHROPOMORPHIC PHANTOMS

PBU phantoms provide life like images and attenuation,
ideal for educational training applications.
PBU phantoms can also help determine and evaluate optimal scanning parameters.

LINE UP

We provide a variety of anthropomorphic phantoms to meet your requirements that suit you best.

COMPARISON

NEWBORN

Item Image

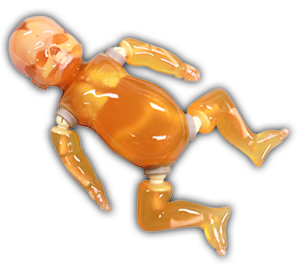

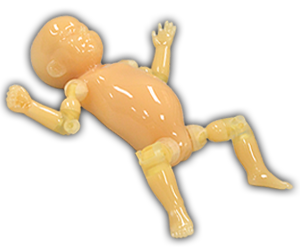

Product Name Newborn Whole Body Phantom Newborn Whole Body Phantom "PBU-80"
Model Number/ Code PH-50/ 41912-000 PH-50B/ 41912-100
Use

Plane X-ray

Plane X-ray


CT


*with a hole for dosimeter insertion
Anatomy Same as on the left
* smaller than PBU-80
skull/ spine/ clavicles/ scapulae/ ribs/ humerus/ radius/ ulnae/ bones of hands/ femora/ tibiae/ fibula/bones of foot/ pelvis/ lungs/ mediastinum/ colon
Pathology Meconium aspiration syndrome * special order -
Body Parts combined unit combined unit
Size 42 cm/ 16.5 in 53 cm/ 20.8 in
Weight 2.8 kg/ 6.2 lb 3.5 kg/ 7.7 lb
Material Soft tissue:Urethane based resin (specific gravity: 1.06)
Artficial bone:Epoxy resin (specific gravity: 1.31)
Soft tissue:Urethane based resin (specific gravity: 1.06)
Artficial bone:Epoxy resin (specific gravity: 1.31)
Notes Storage case included Storage case included
Detail

Sorry no page

Show more

CHILD (5-year-old)

Item Image

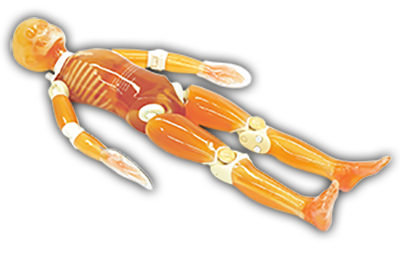

Product Name Pediatric Whole Body Phantom "PBU-70" Bone Fracture Pediatric Phantom "PBU-70B"
Product Number/ Code PH-2C/ 41350-300 PH-2D/ 41350-500
Use

Plane X-ray

Plane X-ray

Anatomy skull/ spine/ clavicles/ scapulae/ ribs/ sternum/ coxal bones/ humerus/ antebrachial bone/ bones of hand/ femur/ patella/lower leg bone / bones of foot/ lung( pulmonary vessels until fourth branch)/ trachea( until first generation)/ heart/ liver with portal and hepatic veins Same as on the left
Pathology - Bone fracture
*Typical fractures resulting from child abuse are also included.
skull fracture( left side) / fifth costal bone/ scapula/ supracondylar fracture of the humerus/ forearm shaft fractures/ spiral fracture of the distal tibia/ fracture callus of the femur
Body Parts 10 10
Size 110cm/ 43.3 in 110cm/ 43.3 in
Weight 20 kg/ 44 lb 20 kg/ 44 lb
Material Soft tissue:Urethane based resin (specific gravity: 1.06)
Artficial bone:Epoxy resin (specific gravity: 1.31)
Skull:Epoxy resin (specific gravity: 1.11)
Soft tissue:Urethane based resin (specific gravity: 1.06)
Artficial bone:Epoxy resin (specific gravity: 1.31)
Skull:Epoxy resin (specific gravity: 1.11)
Notes Storage cases sold separately
Storage case:41363-080
Storage cases sold separately
Storage case:41363-080
Detail

Show more

Show more


*link to“PBU-70(Normal)”

ADULT

Item Image

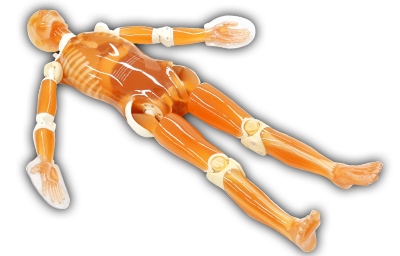

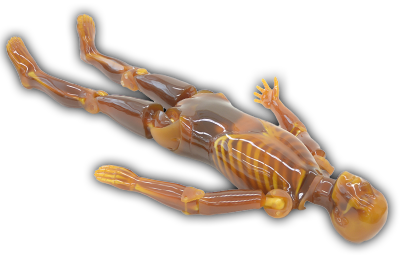

Product Name Whole Body Phantom PBU-50 "Xray-Man" TOUGH Whole Body Phantom “PBU-90 RUGGED”
Product Number/ Code PH-2/ 41350-000 PH-60/ 41925-000
Use

Plane X-ray

Plane X-ray

Anatomy skull/ spine/ clavicles/ scapulae/ ribs/ sternum/ coxal bones/ lungs with pulmonary vessels( up to tertiary level)/ trachea( up to fourth bifurcations)/ heart/ liver with portal and hepatic veins/ kidneys/ humerus/ antebrachial bone/ bones of hand/ femur/ patella/ lower leg bone / bones of foot Same as on the left

*The bones of the hands and foot of PBU-90 are Simplified compared to PBU-50/60 to increase durability of the phantom.
Pathology - -
Body Parts 10 10
Size 165cm/ 65 in 165cm/ 65 in
Weight 50kg/ 110 lb 50kg/ 110 lb
Material Soft tissue:Urethane based resin (specific gravity: 1.06)
Artficial bone:Epoxy resin (specific gravity: 1.31)
Skull:Epoxy resin (specific gravity: 1.11)
Soft tissue:Urethane based resin (specific gravity: 1.06)
Artficial bone:Epoxy resin (specific gravity: 1.31)
Skull:Epoxy resin (specific gravity: 1.11)
Notes Storage cases sold separately
Storage case: 41363-070
Storage cases sold separately
Storage case: 41363-070
Detail

Show more

Show more

Item Image

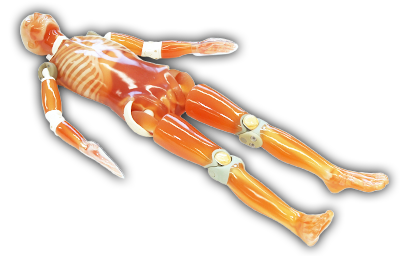

Product Name Whole Body Phantom PBU-60 CT Whole Body Phantom with Pathologies
Product Number/ Code PH-2B/ 41350-200 PH-2E/ 41350-700
Use

Plane X-ray


CT

Plane X-ray


CT

Anatomy [ Full internal organs]
skull/spine/ clavicle/ scapulae/ ribs/ sternum/ humerus/ antebrachial bone/ bones of hand/ femur/ bones of foot/ cerebrum/ cerebellum/ brain stem/ ventricles/ cerebral artery/ eyes/ lungs with pulmonary vessels/ trachea/ heart/ liver with portal and hepatic veins/ venous/ portal vein/ pancreas/ kidneys/ gallbladder/ spleen/ seminal vesicle / aorta/ cava/ ureter/ urinary bladder/ prostate/ rectum/ sigmoid colon
Same as on the left
Pathology - brain tumor/ subarachnoid hemorrhage / pulmonary tumor/ hepatic tumor/ pancreatitis/ gall stone/ kidney stone/ appendicitis/ spondylolisthesis
Body Parts 10 10
Size 165cm/ 65 in 165cm/ 65 in
Weight 50 kg/ 110 lb 50 kg/ 110 lb
Material Soft tissue:Urethane based resin (specific gravity: 1.06)
Artficial bone:Epoxy resin (specific gravity: 1.31)
Skull:Epoxy resin (specific gravity: 1.11)
Soft tissue:Urethane based resin (specific gravity: 1.06)
Artficial bone:Epoxy resin (specific gravity: 1.31)
Skull:Epoxy resin (specific gravity: 1.11)
Notes Storage cases sold separately
Storage case:41363-070
Storage cases sold separately
Storage case:41363-070
Detail

Show more

Show more

FAQ

Defference between "Phantom for plane X-ray" and "Phantom for CT"

What is difference between phantoms for plane X-ray and CT?
They may look quite alike or even identi;
  • for CT has full internal organs
  • radiology absorption and Hounsfield number approximate to human body
  • materials are the same as one for X-ray
  • also can be used by plane X-ray

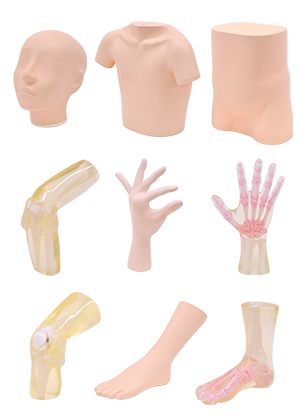

OPTIONAL PARTS
