PH-41

Tough Bone Phantom BE-T, BE-H, BE-NWD

41420-110~560   Quote

Human bone substitute phantoms to simulate body structure in combination with PH-40 and PH-42

  • Slab Phantom
  • Bone Equivalent
Features A stable, high quality and shatter-free phantom for radiotherapy.
Size (approx.) Refer to catalog pdf
Materials Epoxy resin
VARIATIONS BE-T-2005 Compact Bone 200x200x5mm/ 8x8x0.2 in / BE-T-2010 Compact Bone 200x200x10mm/ 8x8x0.4 in / BE-T-2020 Compact Bone 200x200x20mm/ 8x8x 0.8 in / BE-H-2005 Cortical Bone 200x200x5 mm/ 8x8x0.2 in / BE-H-2010 Cortical Bone 200x200x10mm/ 8x8x0.4 in / BE-H-2020 Cortical Bone 200x200x20mm / 8x8x0.8 in / BE-N-2005 Inner Bone 200x200x5 mm/ 8x8x0.2 in / BE-N-2010 Inner Bone 200x200x10 mm/ 8x8x0.4 in / BE-N-2020 Inner Bone 200x 200x 20 mm/ 8x 8x 0.8 in / BE-H-3005 Cortical Bone 300x 300x 5 mm/ 12x 12x 0.2 in / BE-H-3010 Cortical Bone 300x 300x 10mm/12x 12x 0.4 in / BE-H-3020 Cortical Bone 300x 300x 20 mm/ 12x 12x 0.8 in / BE-N-3005 Inner Bone 300 x 300 x 5 mm / 12 x 12 x 0.2 in / BE-N-3010 Inner Bone 300 x 300 x 10 mm / 12 x 12 x 0.4 in / BE-N-3020 Inner Bone 300 x 300 x 20 mm / 12 x 12 x 0.8 in

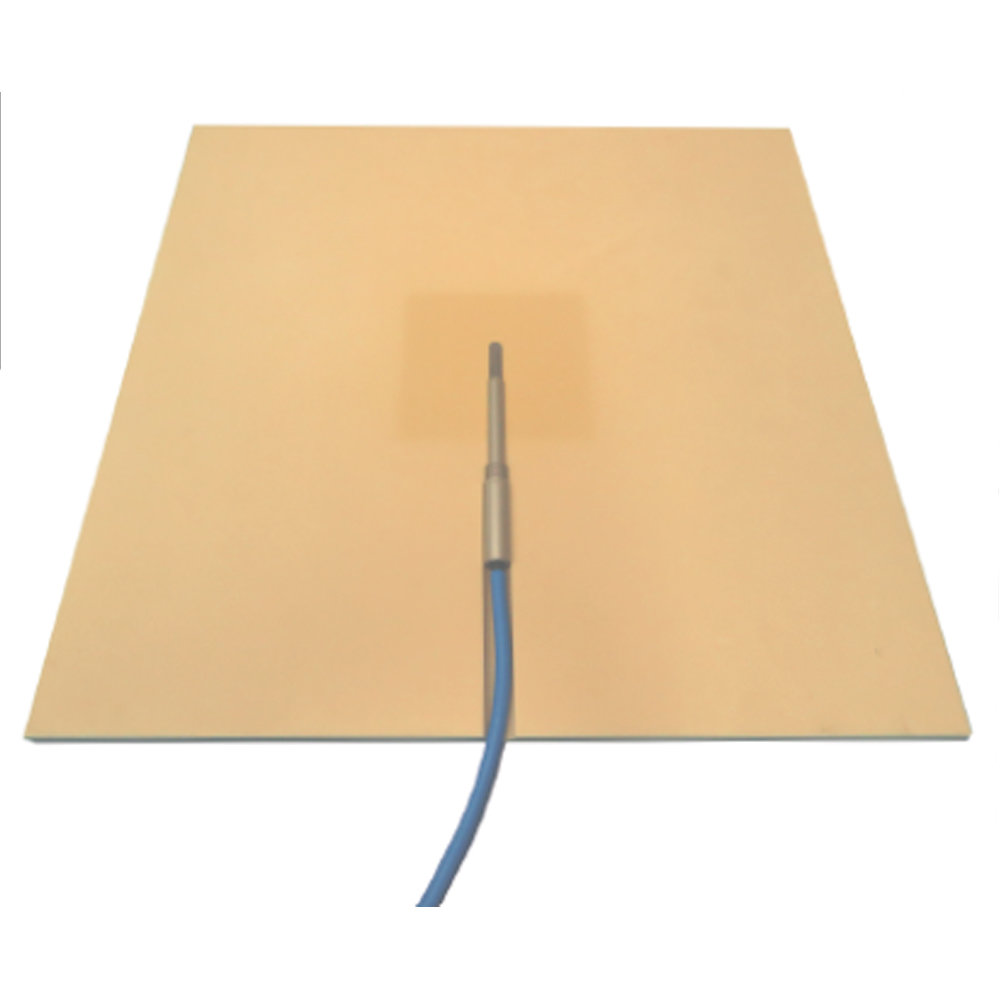

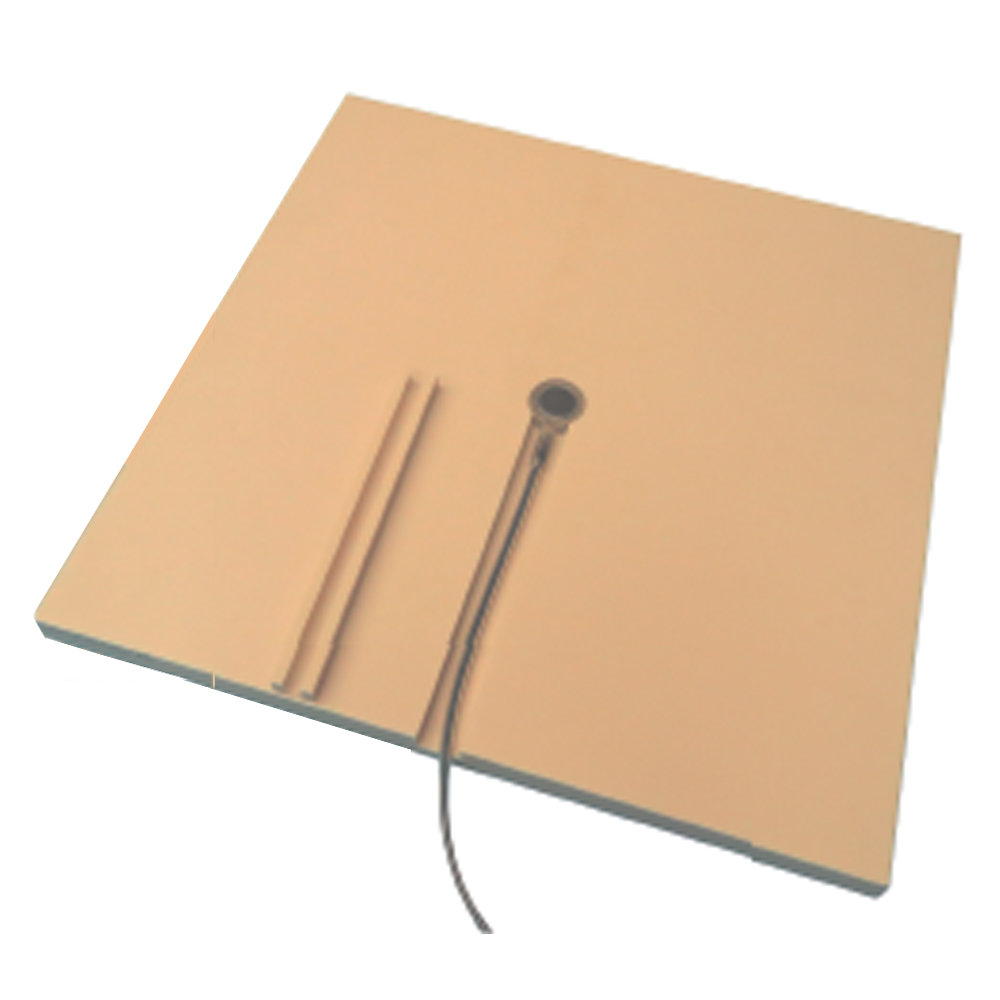

Dosimetry cavities Tough series phantoms can be ordered with cavities and plugs. Specify your chamber's manufacturer and model number. Let us have dimensional drawings of the chambers you are using to estimate cost.
Update July 3, 2020
