A phantom designed for physical evaluation of iteratively reconstructed images under low CNR
PH-55
CT ERF Phantom HIT

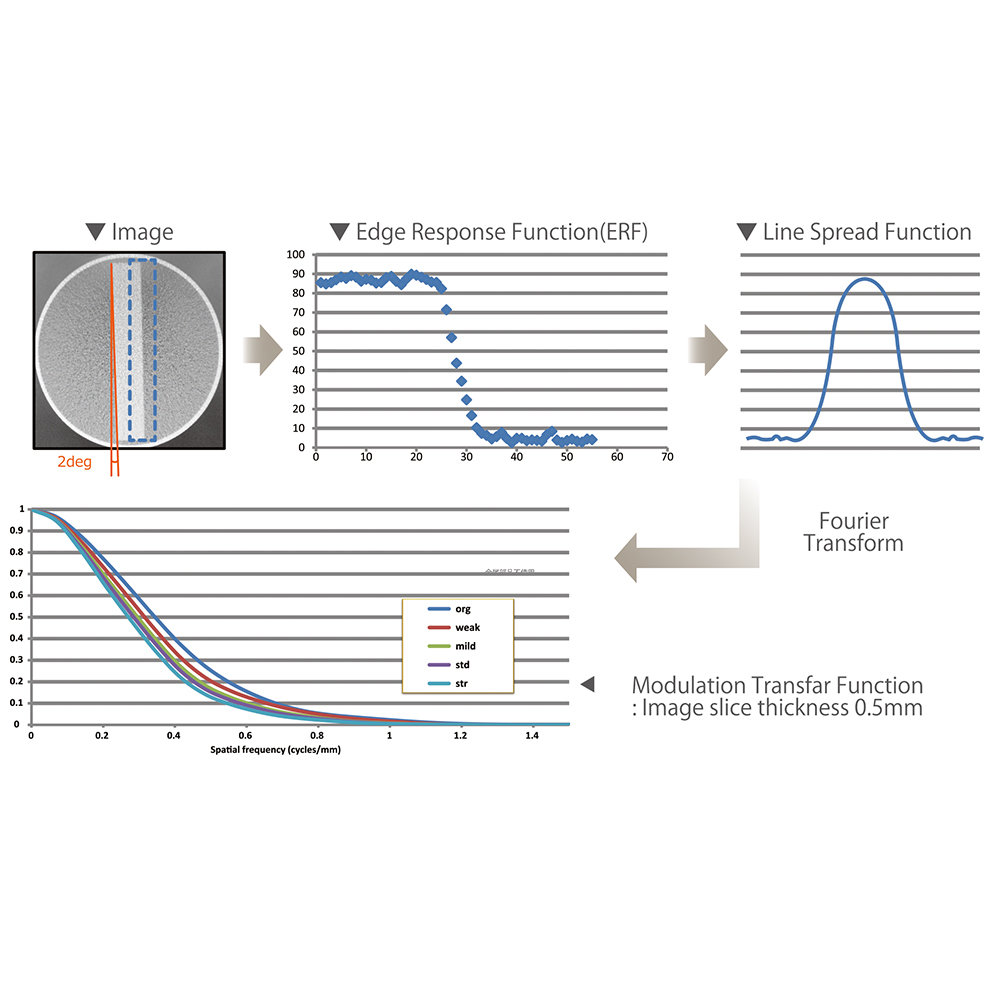

| Features | 1.The phantom is designed to physically and quantitatively evaluate iteratively reconstructed images in the low CNR area, such as abdomen, where MTF of PSF is less useful / 2.The phantom uses edge spread function (ESF) to calculate MTF of the low CNR images, which facilitate assessing performance properties of iteratively reconstructed images under low CNR |
|---|---|
| Set includes | 1 cylindrical container (200 mm dia.) / 5 measurement plates / 1 rotation holder / 1 fixture for the cylindrical container /1 angle adjustment holder / 1 philips screwdriver / 1 petroleum jelly / screws (spare) / 1 storage case / manual |
| Size (approx.) | dia. 200×250 mm |
| Weight (approx.) | 4.5kg |
| Materials | Acrylic resin, polyurethane |

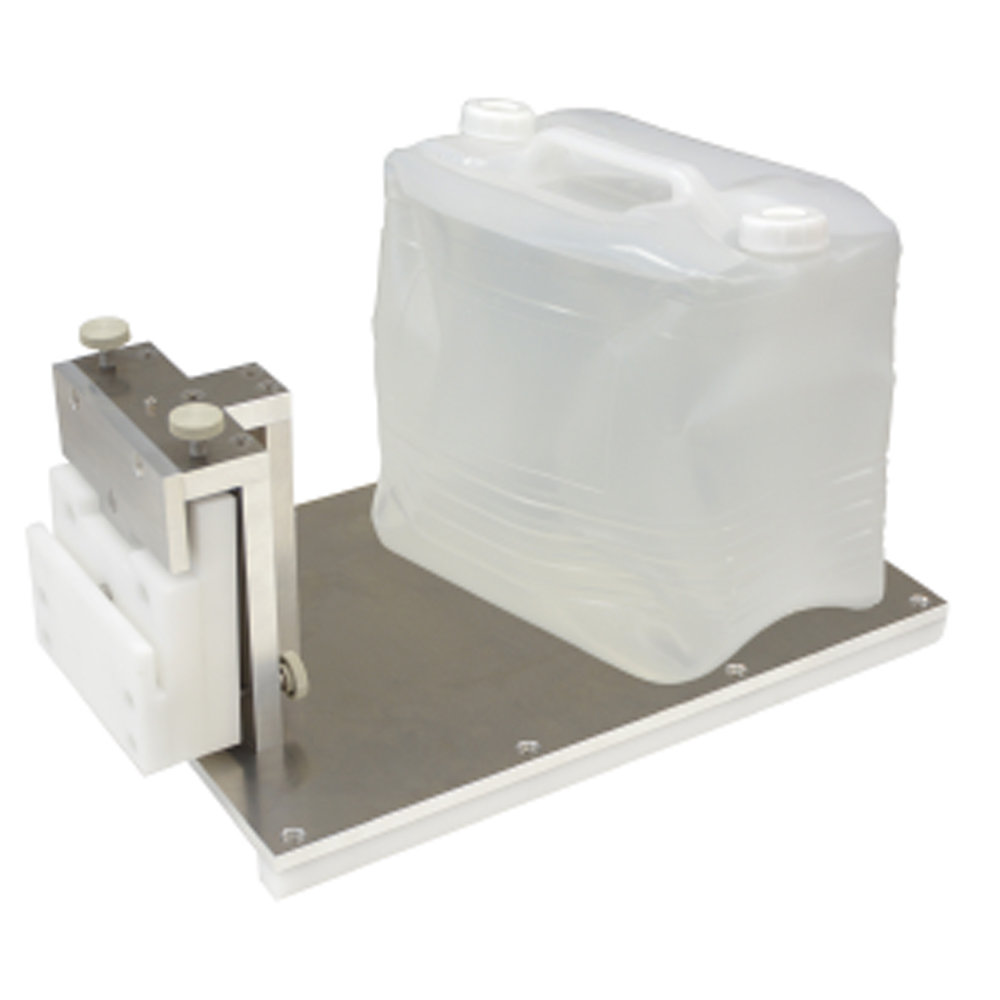

| Optional parts | 41919-010 Angle adjustment holder (table-top type) |
| APPLICATIONS | CT |
| Update | August 10, 2020 |
