Detailed knee anatomy with HU of each bone, cartilage, and ligament
スペイン語カタログ追加20231117木村
- Knee Phantom
PH-71
Knee Ligament Phantom
| Features | 1. Anthropomorphic knee phantom that allows visualization of ligaments and cartilage / 2. Close-to-human radiation absorption and HU for each anatomical structure |
|---|---|

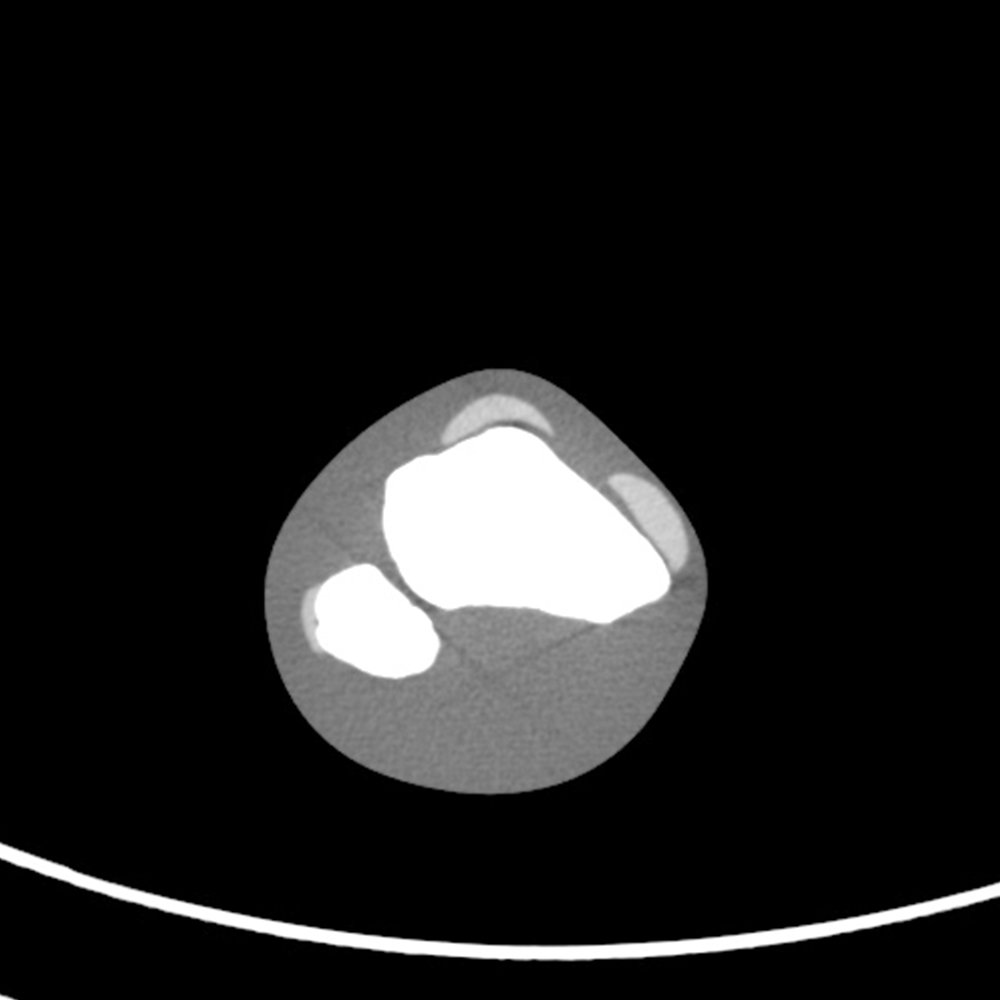

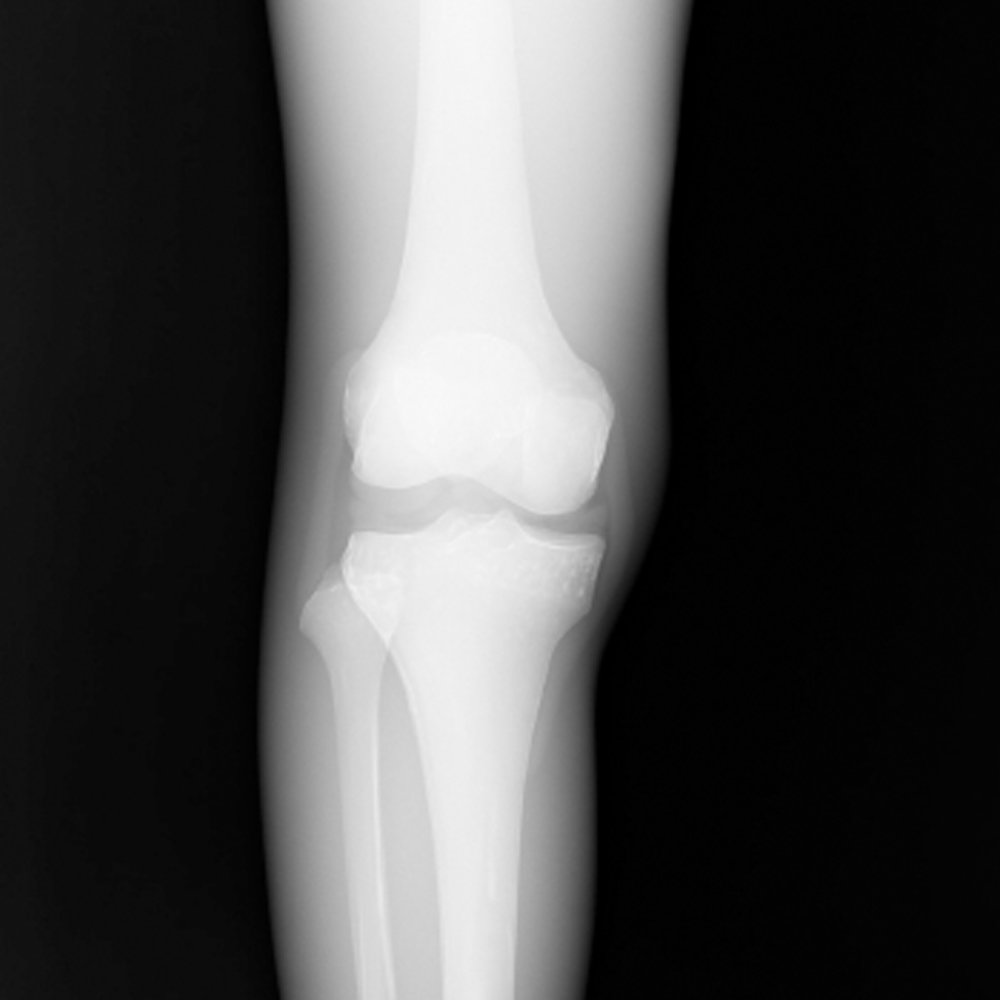

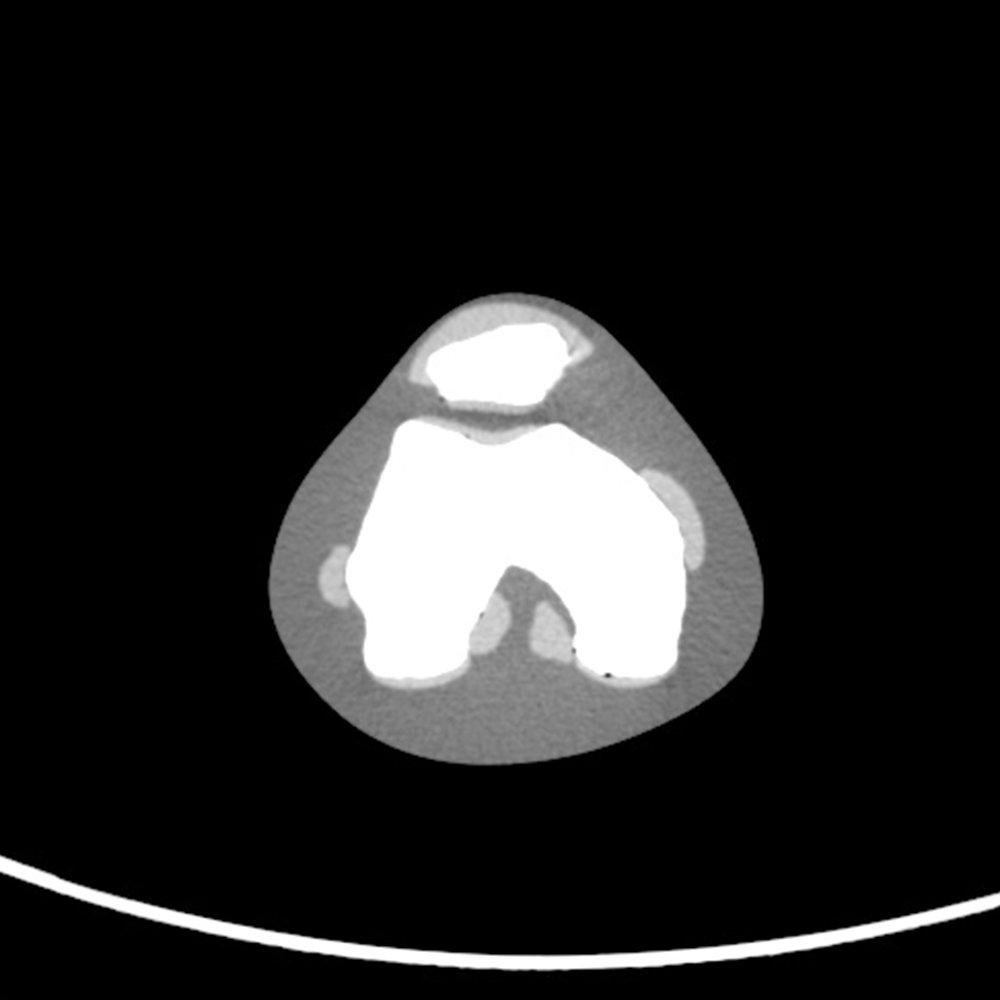

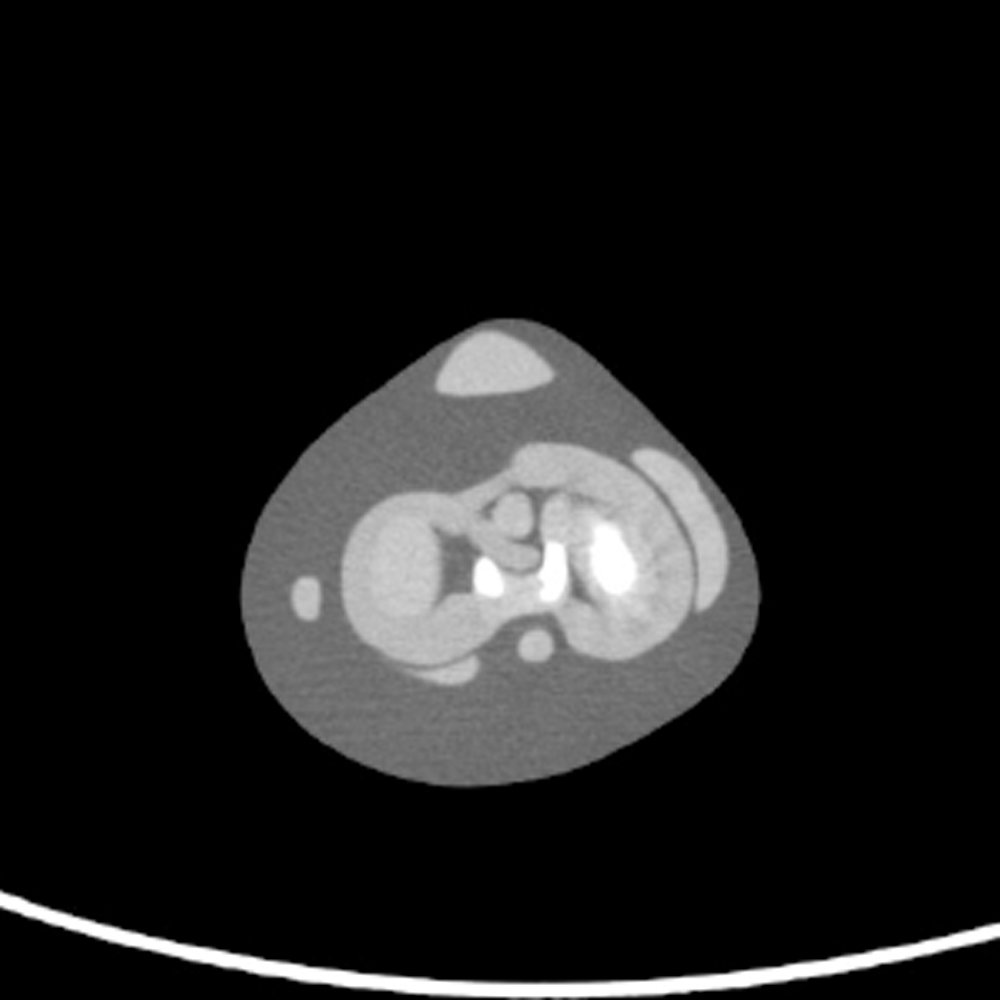

| Training skills / Applications | Plain X-ray / CT |
| Set includes | 1 knee phantom / 1 storage case / manual |
| Size (approx.) | φ14×45cm |
| Weight (approx.) | 約4.5kg |
| Materials | Soft tissue: urethane based resin (density: 1.06) / Synthetic bone: epoxy resin (density: 1.31) |
| Anatomy | femur / tibia / fibula / patella / articular cartilage of patella / meniscus / cruciate ligament / medial collateral ligament / fibular |
| Update | July 20, 2020 |
