| 41949-000 | US$ ０ |
|---|
A phantom for determining imagining conditions and image processing parameters for moving images such as IVR
- IVR
- Noise reduction
- Catalog Download
PH-81

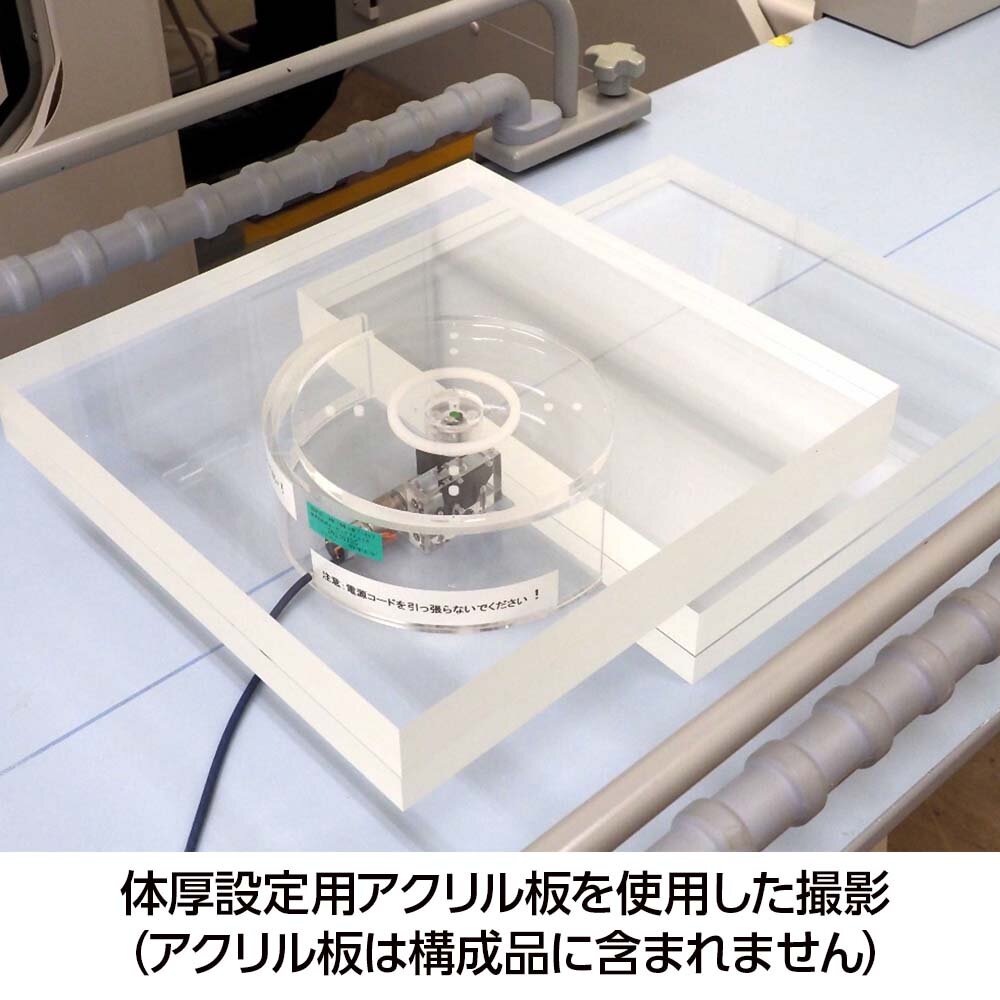

Moving Phantom for Residual Image Evaluation KS-III
| Features | Signals placed on a rotating disk for determining imagining conditions and image processing parameters for moving images Using moving signals to analyze the residual images and lags Metallic ball for alignment Signals with four different contrast enables visual evaluation in low contrast Come with data analysis software which use imageJ |
|---|---|
| Training skills / Applications | Rate of rotation:4 /minute *Rate 4rpm is based on cardiac movement of 20mm/s Internal signal:20.9mm/s external signal:27.2mm/s Power supply:AC100V 50/60Hz Consumption:10W |
| Set includes | 1 control unit / 1 disc phantom / 1 set of cable and plug / 1 analysis software / 1 carrying case / manual |
| Size (approx.) | W200 x D185 x H67mm |
| Weight (approx.) | 855 g |
| Power source | AC100V 50/60Hz |
| Power requirements (approx.) | 10W |
| Production ＆ Development Supervision | Keisuke Kondo Associate Professor Radiological Sciences Komazawa University, Japan |
| Update | April 5, 2022 |
