| 41946-000 | Basic set | Quote |
|---|---|---|
| 41946-100 | Full set | Quote |
Simple, durable and effective tool to learn the basics of lung ultrasound
- Covid-19
US-19
Lung Ultrasound Training Phantom ECHOLUNG
| Features | Four kinds of units: A-LINE, B-LINE(few), B-LINE (many), pneumonia and pleural effusion to learn the basics of lung ultrasound Palpable ribs as body surface landmarks to learn positioning of the transducer Anatomy includes: lung, chest wall, ribs No special storage needed Suitable for training in large groups 1 | |
|---|---|
| Training skills / Applications | Handling and manipulation of probe on lung ultrasound. Scanning the lungs to evaluate pneumonia findings. |

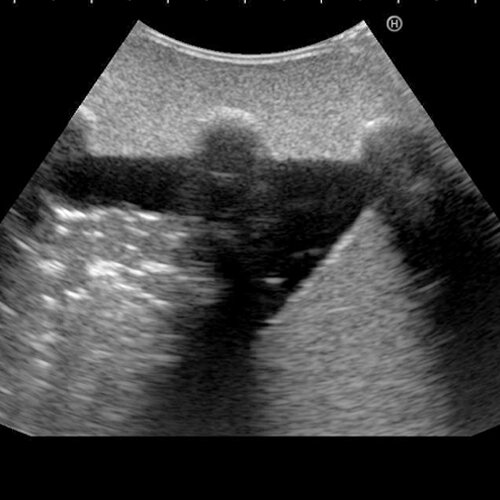

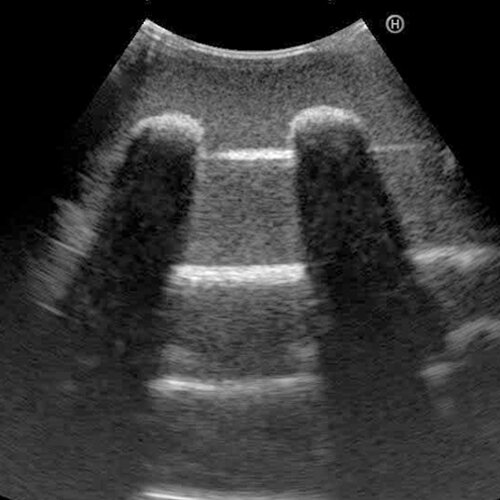

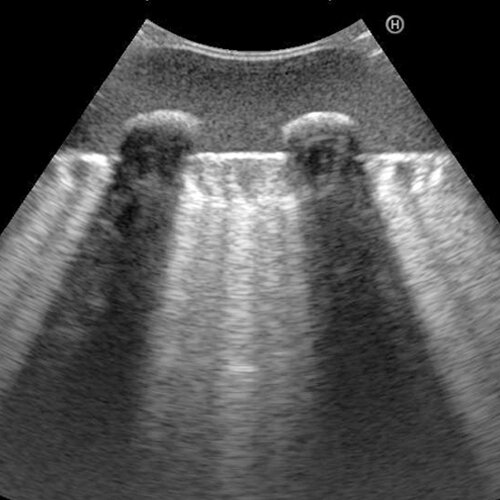

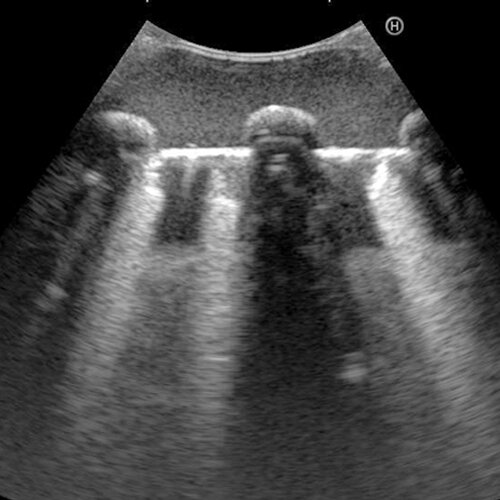

| Case / Pathology | A-LINE B-LINE(few/many) Pneumonia and pleural effusion |
| Set includes | <41946-000> 1 main body / 4 kinds of lung modules x 1 set / 1 talcum powder / 1 storage case <41946-100> 1 main body / 4 kinds of lung modules x 2 set / 1 talcum powder / 1 storage case |
| Size (approx.) | Body:32 x 25 x 12.5cm/13 x 10 x 4.9 inch Module:14.8 x 11.8 x 11cm/5.8 x 4.6 x 4.3 inch |
| Packing size (approx.) | |
| Weight (approx.) | Body:1.9kg/ A-LINE/B-LINE/B-LINE(many) : 0.9kg /Pneumonia and pleural effusion : 1.4kg |
| Recommended device | Convex transducer |
| Update | November 1, 2020 |
