US-22

Dual Modality Human Abdomen Phantom (CT, Ultrasound)

41952-000		Quote

A new abdominal phantom to conduct studies and training of fusion imaging
for wide range of clinical applications. (CT & Ultrasound)

Features	Fusion imaging of anatomic data is proven extremely useful for diagnosis and treatment in radiology, neurology, oncology, and cardiology. It also enables for the localization of tumors and lesions and assists in planning for radiotherapy, biopsy, and surgery with new medical imaging devices.
Training skills / Applications	1. Fusion image generation 2. Mapping for biopsy (invasive procedures are not possible with this phantom) 3. Surgical planning 4. Radiation therapy planning 5. Scanning skills in Ultrasound and CT

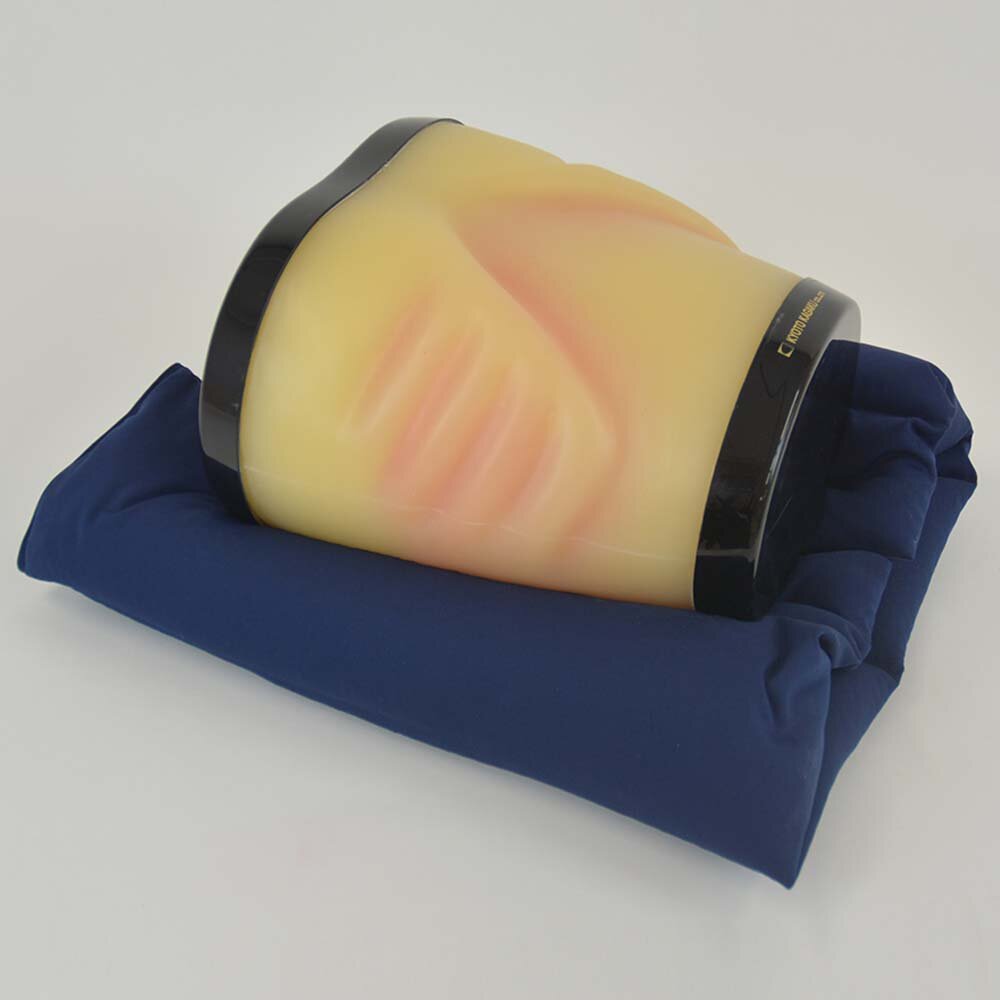

Set includes	1 abdominal phantom / 1 positioning pillow / 1 talcum powder/1 storage case / 1 instruction manual
Size (approx.)	W29 X D19 X H31 cm
Weight (approx.)	12kg
Related products	US-1B Ultrasound Examination Training Phantom“ABDFAN” PH-5 CT Abdomen Phantom
Anatomy	Liver (segmental anatomy, portal and hepatic venous systems, ligamentu, teres and ligamentum venosum) Biliary tract (gallbladder, cystic duct, intrahepatic and extrahepatic bile ducts) Spleen / kidneys Detailed vascular structures (aorta, vena cava, celiac artery and its branches, portal bein and its branches, superior mesenteric vessels, renal vessels, and more)

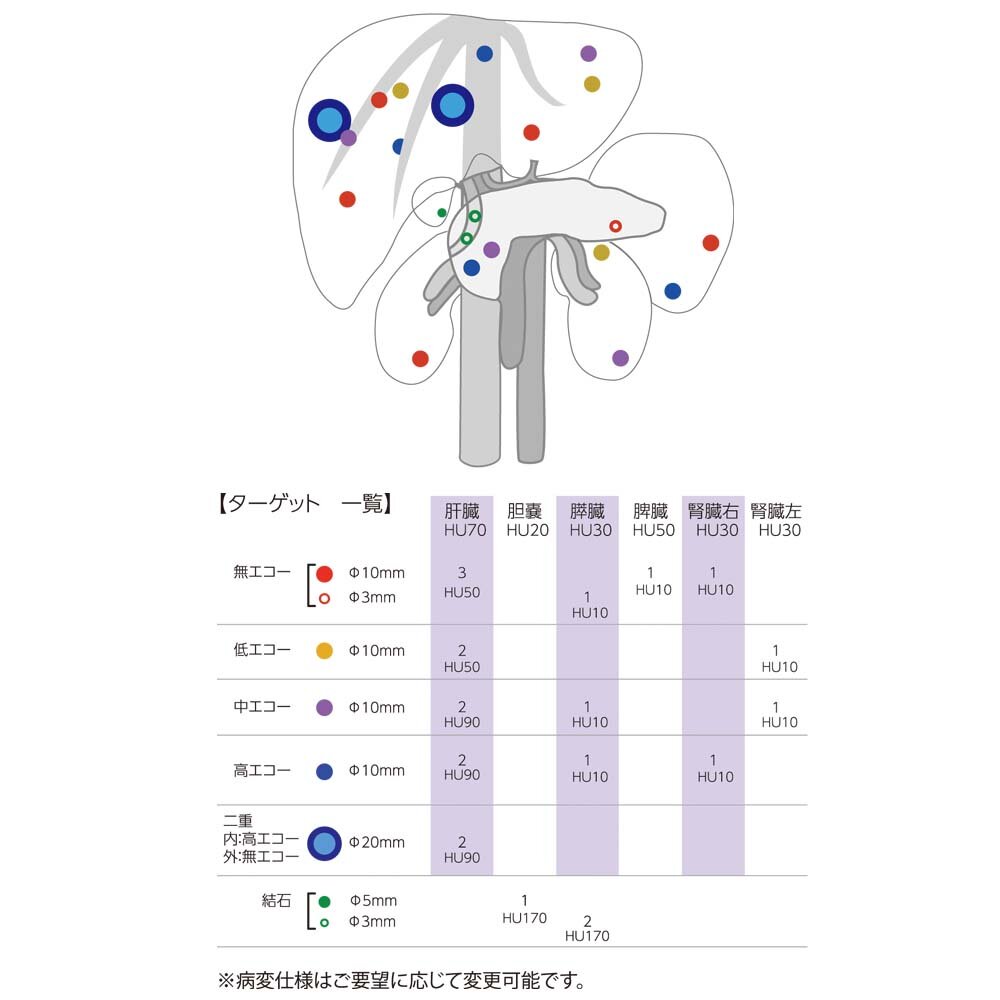

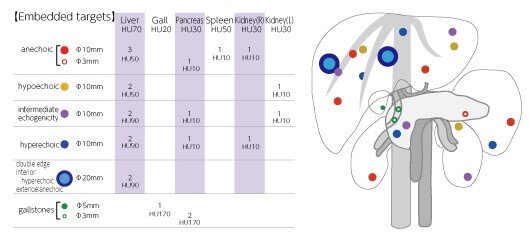

Pathology	Hepatic lesions（cystic and solid）/ Gallbladder and bile duct stones / Pancreatic tumors（one invading the portal bein）/ Splenic lesions / Both kidney lesions / Left adrenal tumor
Update	May 26, 2022
