Angiographic CT Head Phantom ACS

41309-100 for CT Quote
41309-200 for Angio Quote
41309-300 for MECT Quote

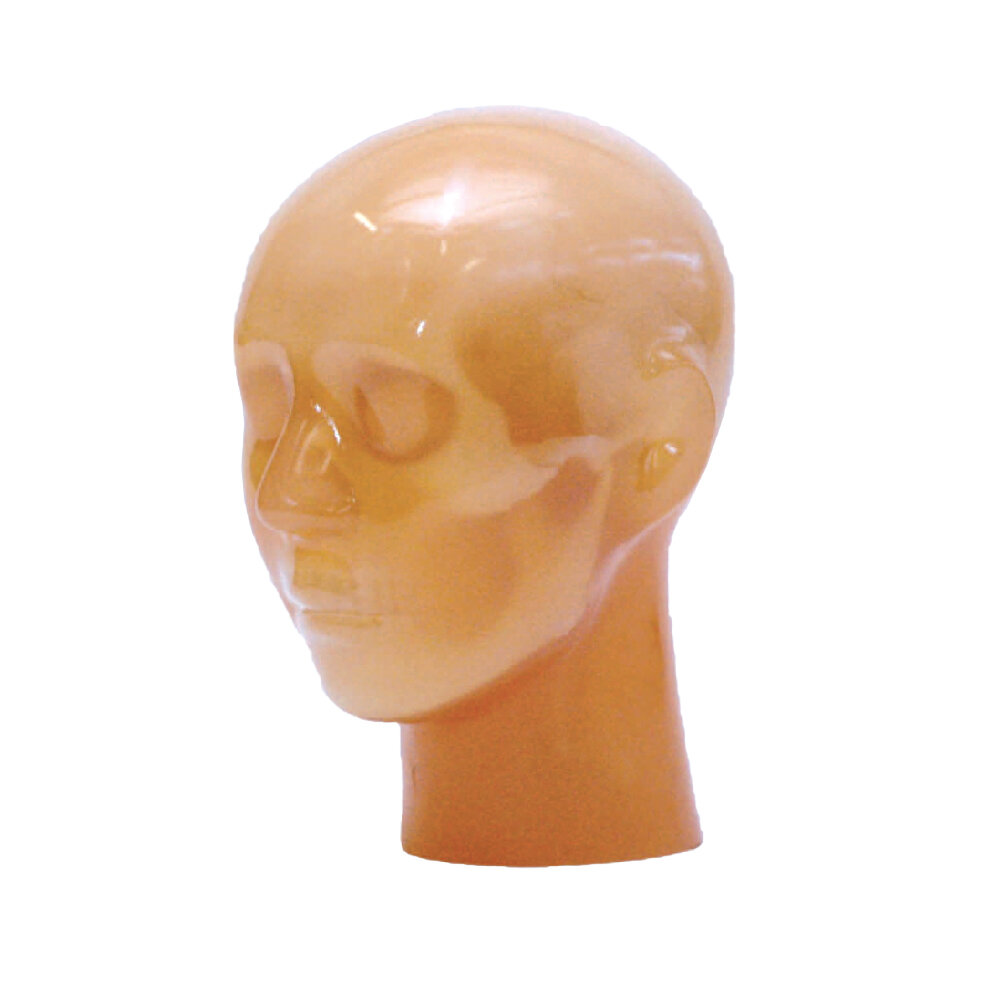

Kyoto Kagaku’s best-selling CT head phantom
A new variation added: Head Phantom for MECT, which contains arteries of innovative water equivalent material

  • angio, head, multi energy, dual energy
Features 1.Three variations of head phantoms with different features for arteries to meet your requirements:
CT/ Angiography / Multi energy CT /
2. Contrast-enhanced left cerebral arteries are three dimensionally embedded in the brain
Training skills / Applications CT/ Angiography / Multi energy CT

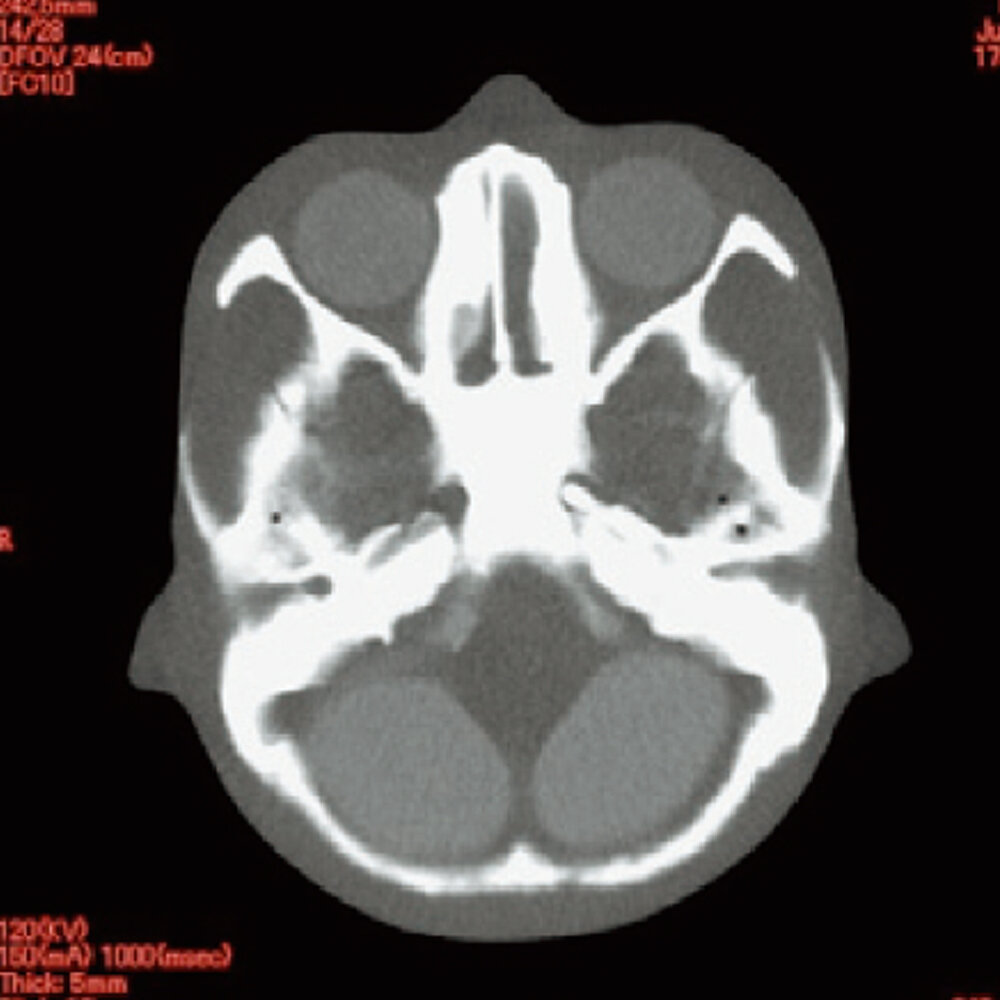

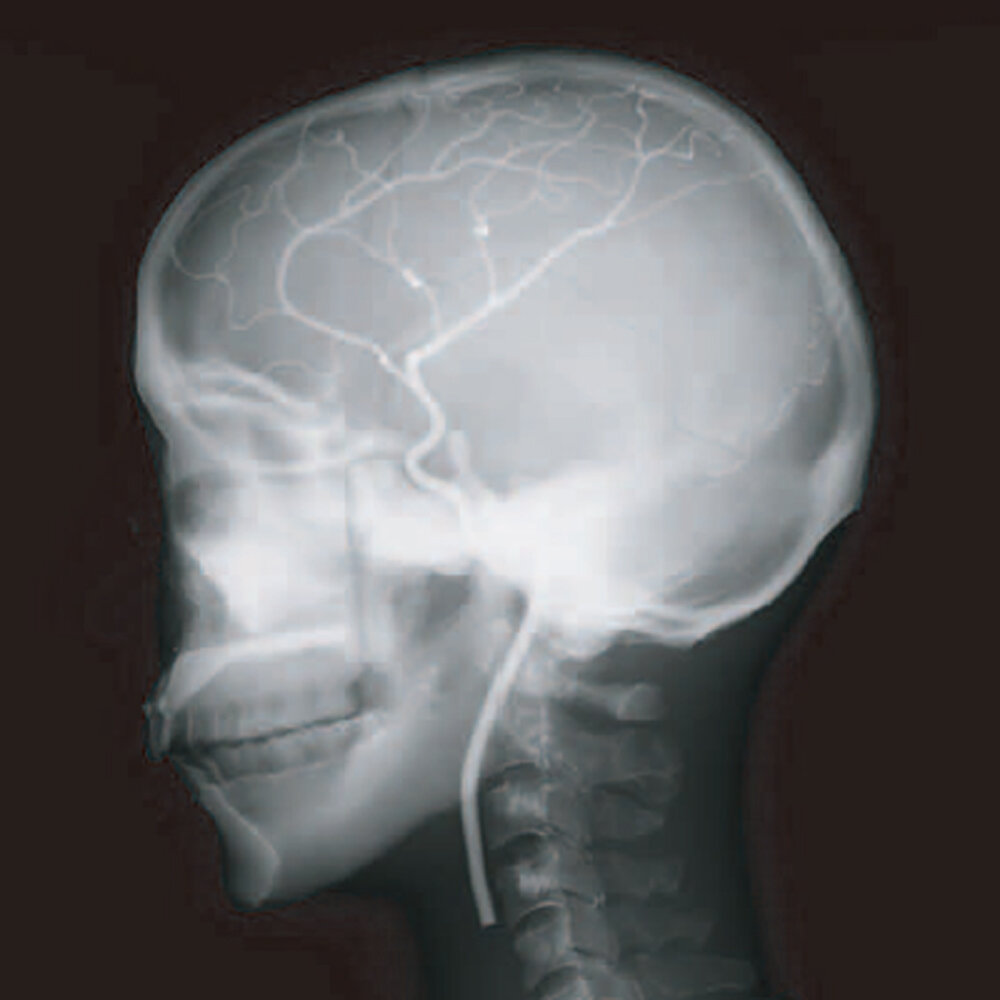

Set includes 1 head phantom / 1 storage case / 1 set of sample X-ray data (DVD) / manual
Size (approx.) H33cm / 13in
Packing size (approx.) W46 x D31 x H32cm / W18.1 x D12.2 x H12.6in
Weight (approx.) 5.25kg / 11.57lb
Packing weight (approx.) 8kg / 17.6lb
Materials Soft tissue: urethane based resin / Cervical vertebrae (C1-C7): epoxy resin

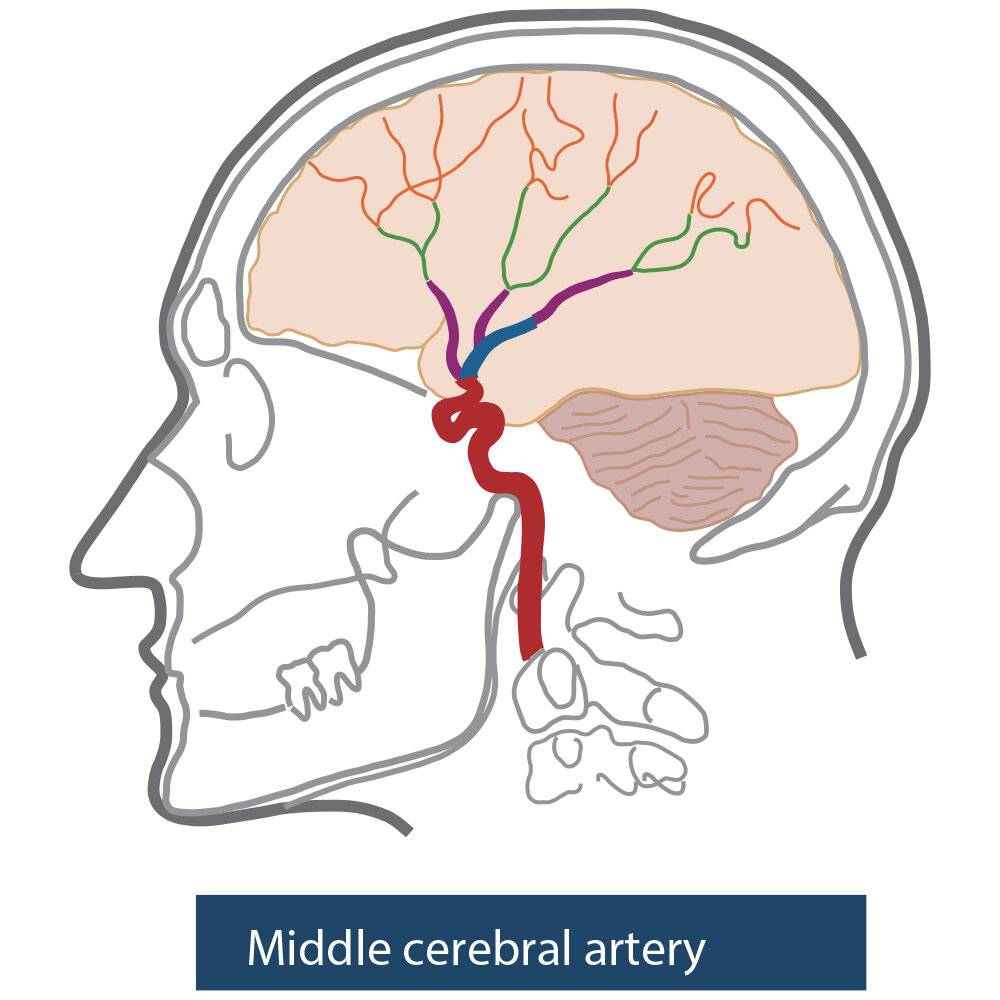

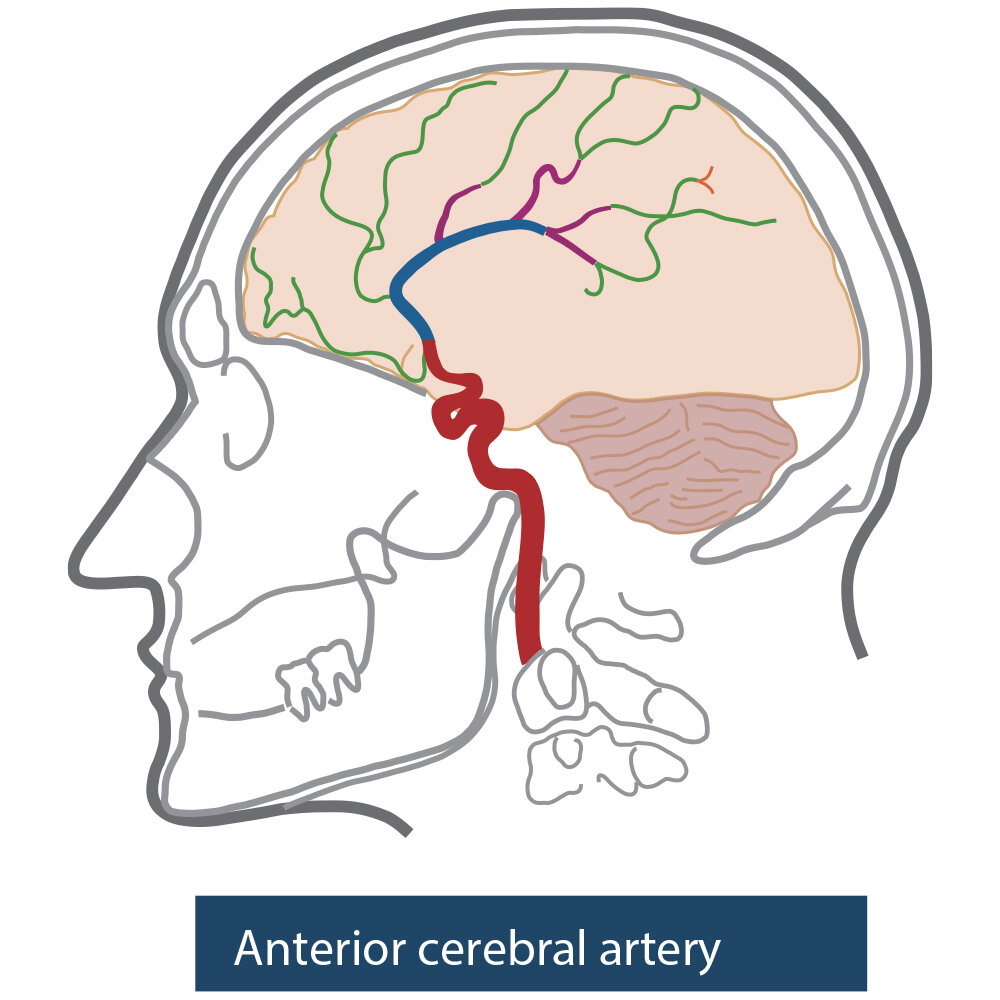

Anatomy A synthetic skull / Soft tissue / Simulated arteries with contrast medium / Left anterior cerebral arteries / Left middle cerebral arteries / Internal carotid artery / Diameters of simulated0.5-4.0 mm / *Arrangement of arteries are the same for all three types.
HU Soft tissue 0 / Cerebrum 40 / Mesencephalon 40 / Cerebellum 40 / Cerebral ventricles 10 / Eye balls 20
Update July 20, 2020
