PH-40

Tough Water Phantom WD

41770-010~200		Quote

Human tissue substitute phantoms with water equivalent physical properties.

Features	A stable, high quality and shatter-free phantom for radiotherapy.
Size (approx.)	Refer to catalog pdf カタログ参照ください
Materials	Epoxy resin
VARIATIONS	WD-3002 300 x 300 x 2 mm/ 12 x 12 x 0.08 in / WD-3003 300 x 300 x 3 mm/ 12 x 12 x 0.12 in / WD-3005 300 x 300 x 5 mm/ 12 x 12 x 0.2 in / WD-3010 300 x 300 x 10 mm/ 12 x 12 x 0.4 in / WD-3015 300 x 300 x 15 mm/ 12 x 12 x 0.6 in / WD-3020 300 x 300 x 20 mm/ 12 x 12 x 0.8 in / WD-3025 300 x 300 x 25 mm/ 12 x 12 x 1.0 in / WD-3030 300 x 300 x 30 mm/ 12 x 12 x 1.2 in / WD-3040 300 x 300 x 40 mm/ 12 x 12 x 1.6 in / WD-3050 300 x 300 x 50 mm/ 12 x 12 x 2.0 in / WD-4002 400 x 400 x 2 mm/ 16 x 16 x 0.08 in / WD-4003 400 x 400 x 3 mm/ 16 x 16 x 0.12 in / WD-4005 400 x 400 x 5 mm/ 16 x 16 x 0.2 in / WD-4010 400 x 400 x 10 mm/ 16 x 16 x 0.4 in / WD-4015 400 x 400 x 15 mm/ 16 x 16 x 0.6 in / WD-4020 400 x 400 x 20 mm/ 16 x 16 x 0.8 in / WD-4025 400 x 400 x 25 mm/ 16 x 16 x 1.0 in / WD-4030 400 x 400 x 30 mm/ 16 x 16 x 1.2 in / WD-4040 400 x 400 x 40 mm/ 16 x 16 x 1.6 in / WD-4050 400 x 400 x 50 mm/ 16 x 16 x 2.0 in

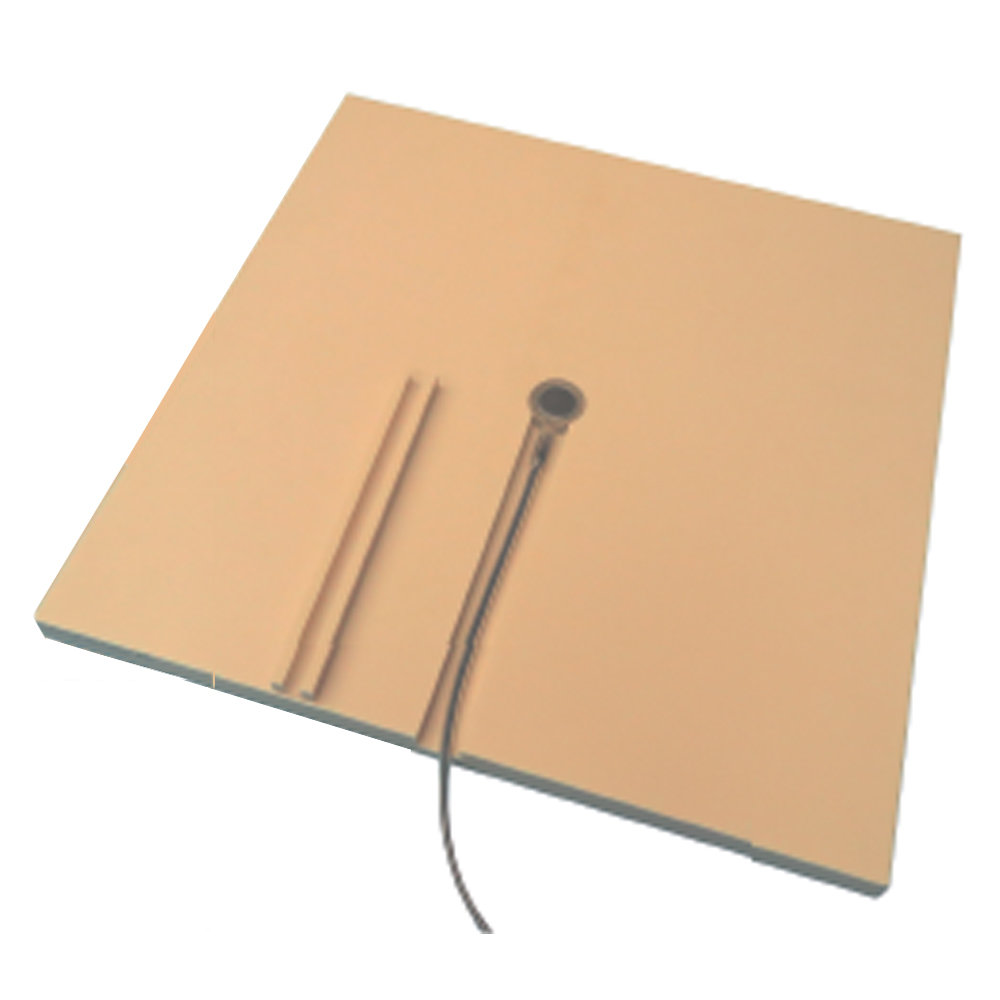

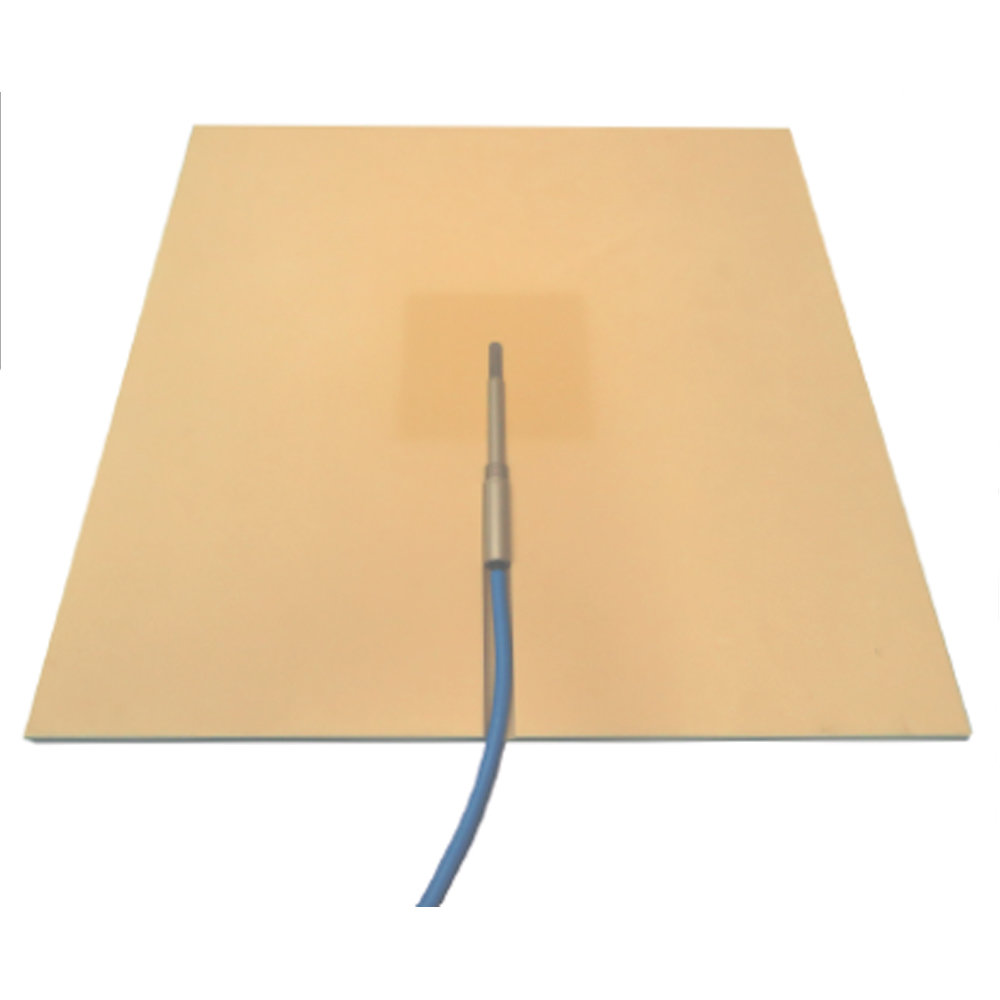

Dosimetry cavities	Tough series phantoms can be ordered with cavities and plugs. Specify your chamber's manufacturer and model number. Let us have dimensional drawings of the chambers you are using to estimate cost.
Update	July 3, 2020
