| 41956-000 | with storage case | Quote |
|---|
Allows for thorough visual evaluation under a variety of scanning conditions
and image comparison of different modalities
- DBT
- 2D Mammography
- Catalog Download
PH-83

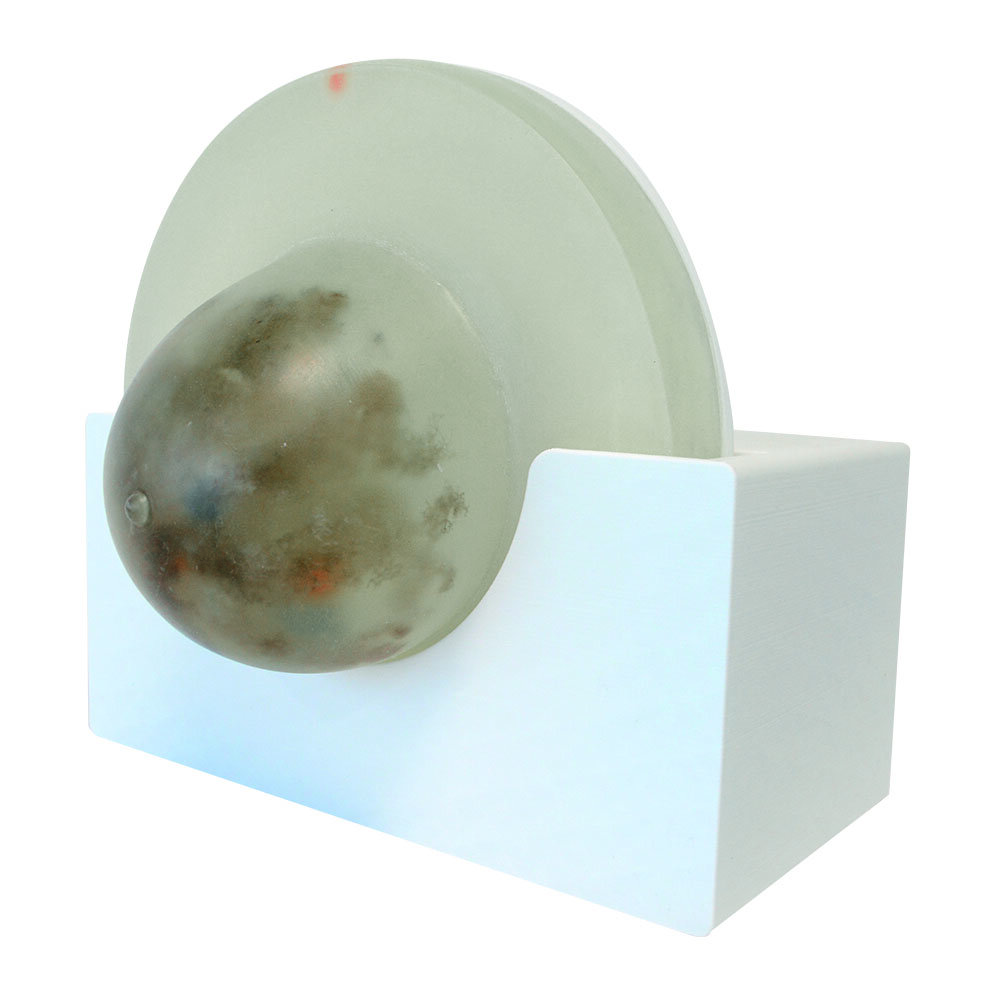

Compressible Mammography Phantom Comp-AY

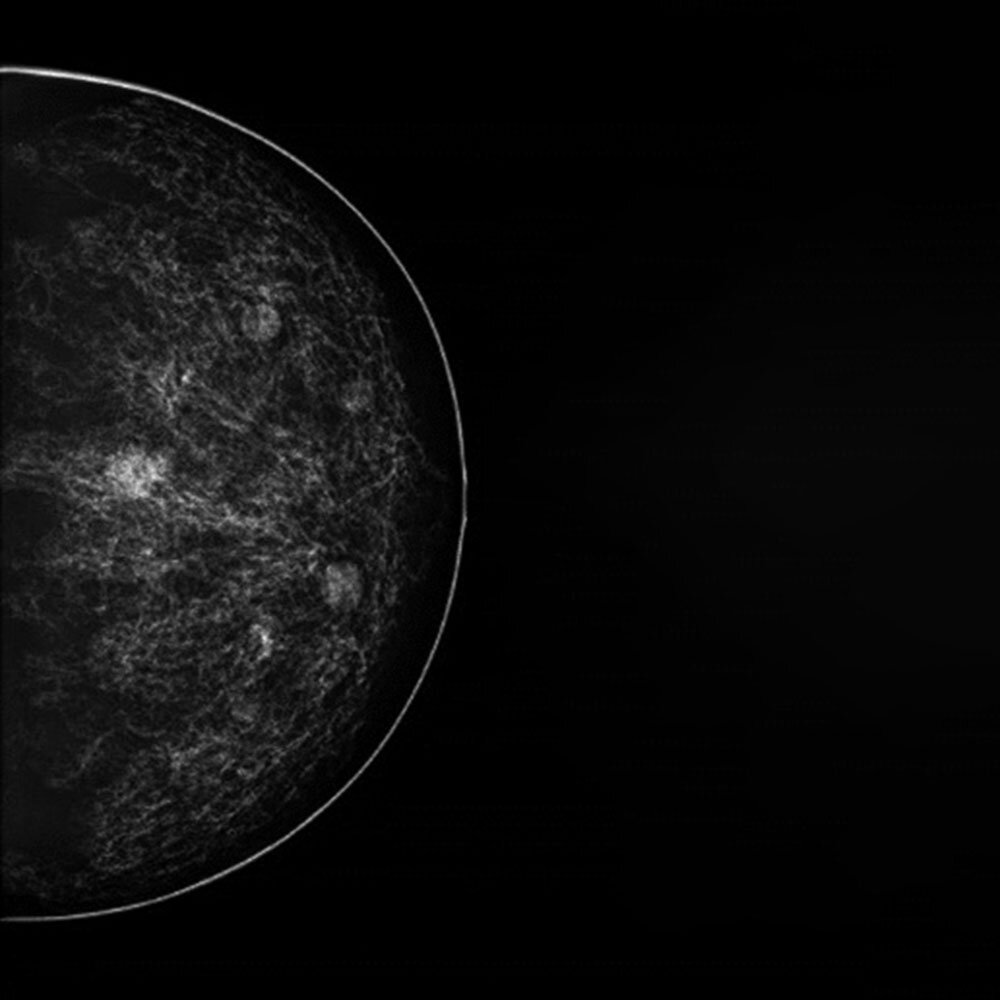

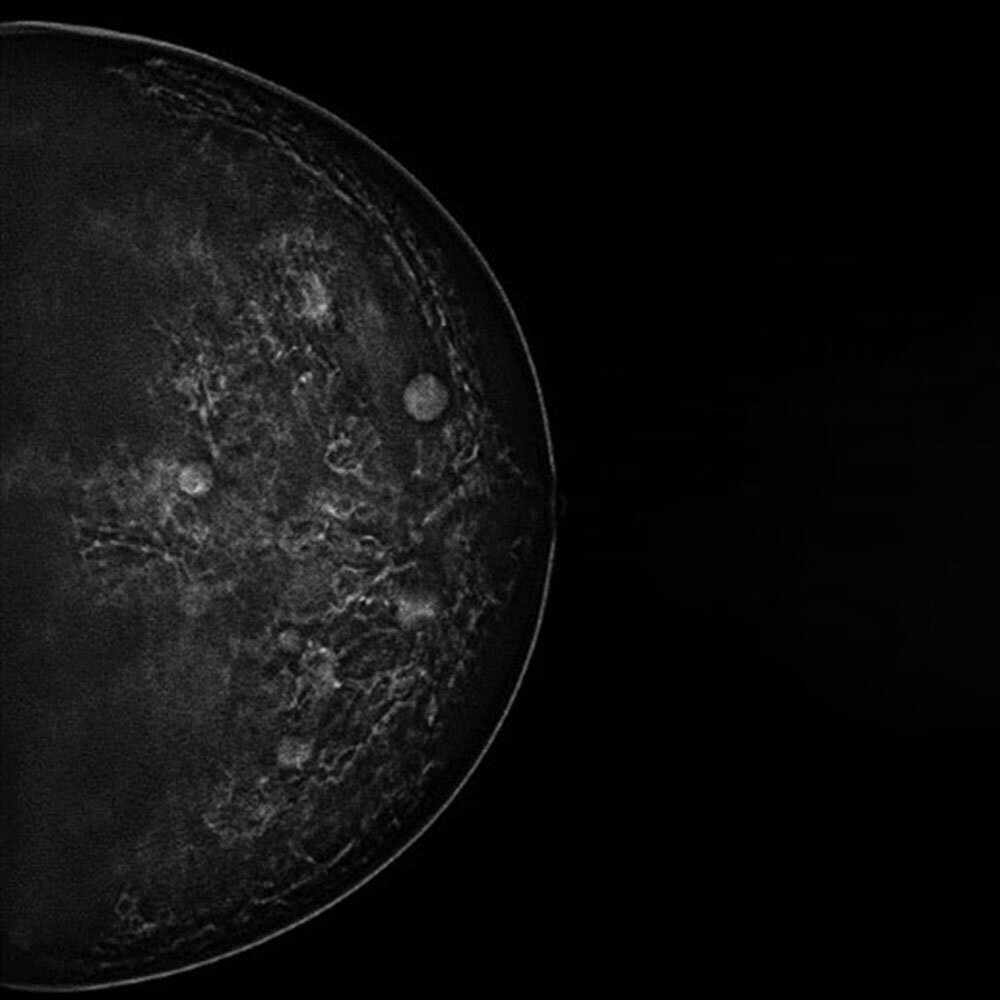

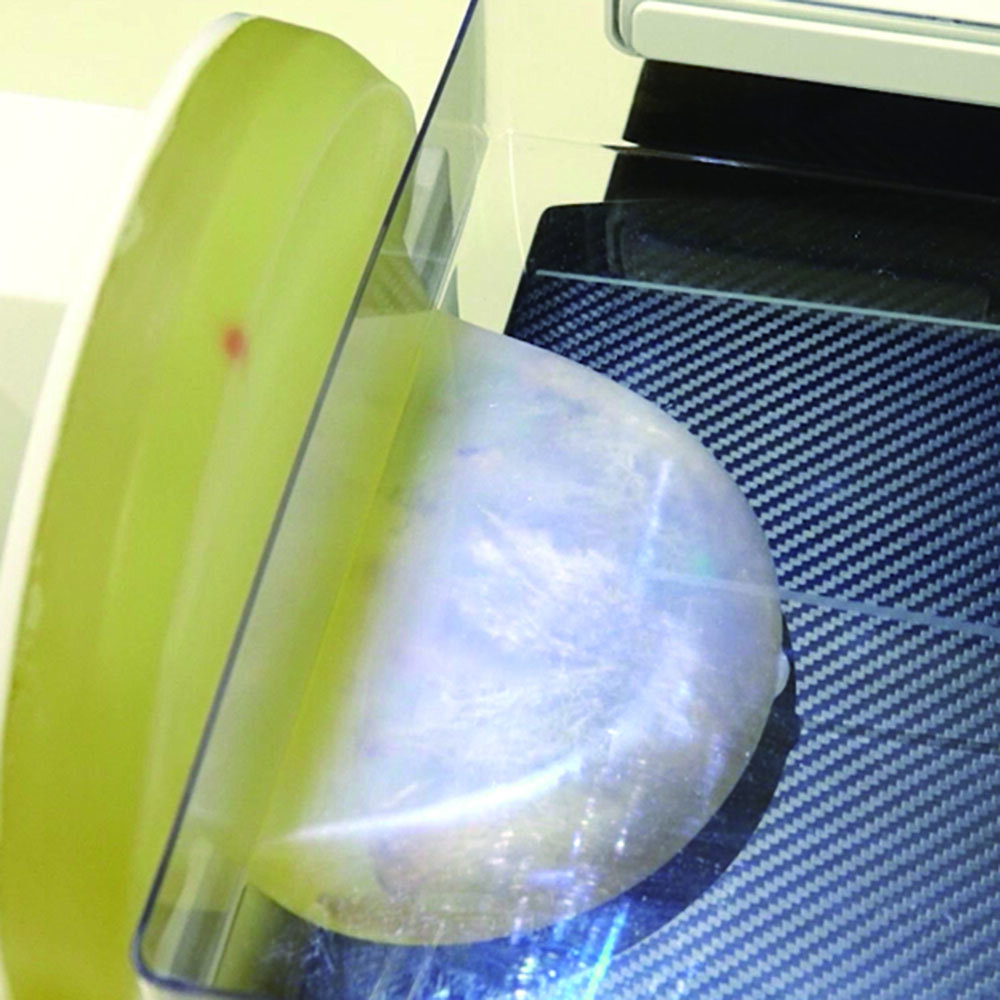

| Features | Soft and resilient material of the phantom allows breast compression for imaging. Three-dimensional structure of simulated mammary gland fibers and tumors to visualize realistic medical images. Allows for visual evaluation under different scanning conditions and locations of tumors Allows for image comparison of different modalities |
|---|---|
| Training skills / Applications | Tomosynthesis Mammography Evaluation and study of effect of breast compression on image quality Patient Positioning |
| Size (approx.) | 約W30×D27×H24cm |
| Weight (approx.) | 約3.1kg (おもりは含めない), 2.5kg(phantom only) |
| Materials | polyurethane |
| Update | March 19, 2024 |
