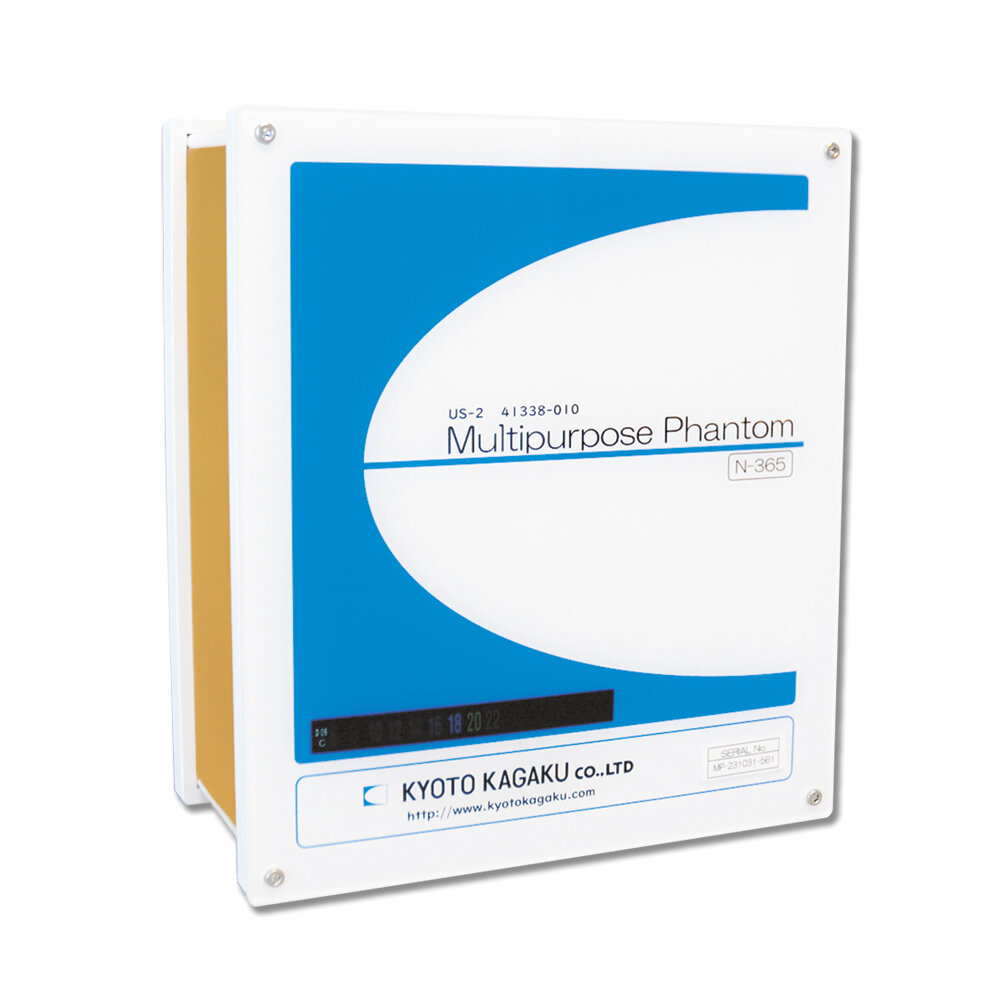

| 41338-010 | Multi Purpose Phantom N-365 | Quote |
|---|
Durable and stable/Useful both for daily assessment and further research
US-2
Ultrasound QA Phantom
| Features | Maintenace free, and no calibration |
|---|---|

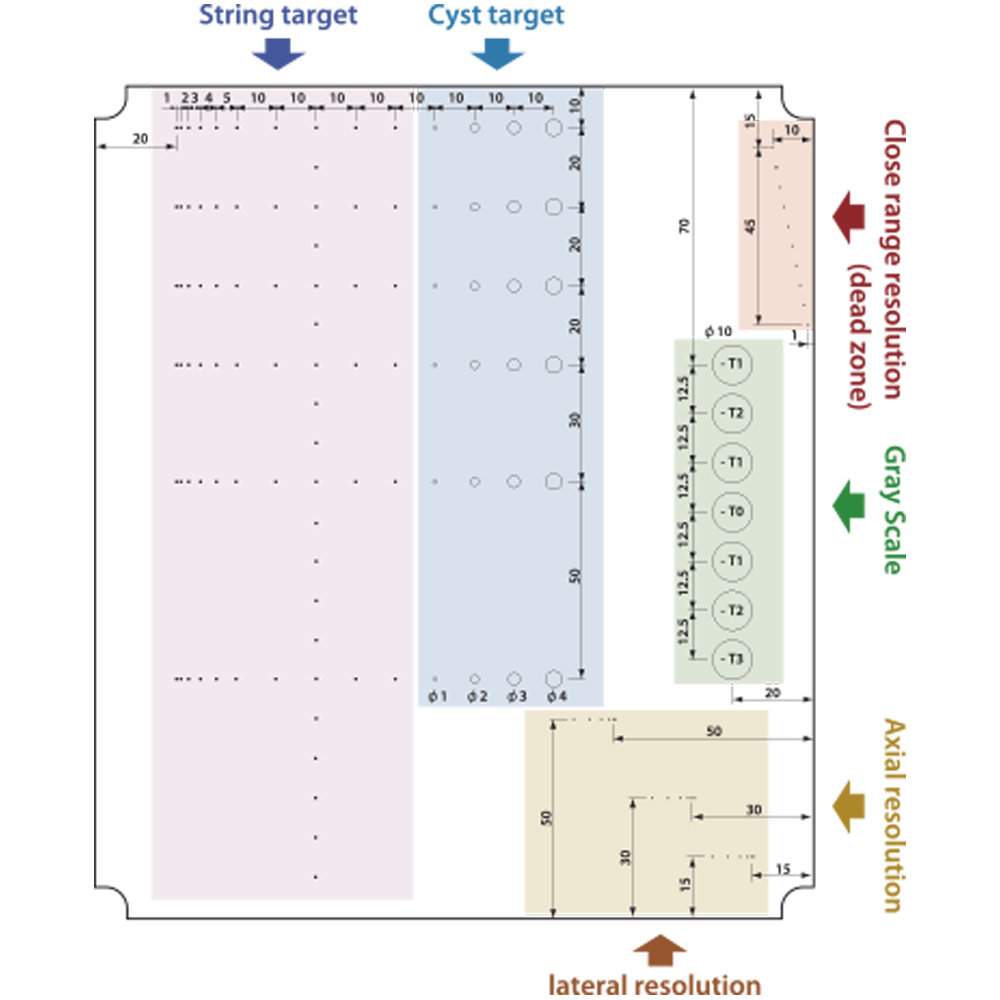

| Training skills / Applications | Gray scale for evaluation, cyst targets with non-resonance cylinders, line targets for geometrical evaluation including close range (dead zone) resolution, axial and lateral resolution are prepared for scanning. The phantom is designed to allow scanning from all four side walls. |

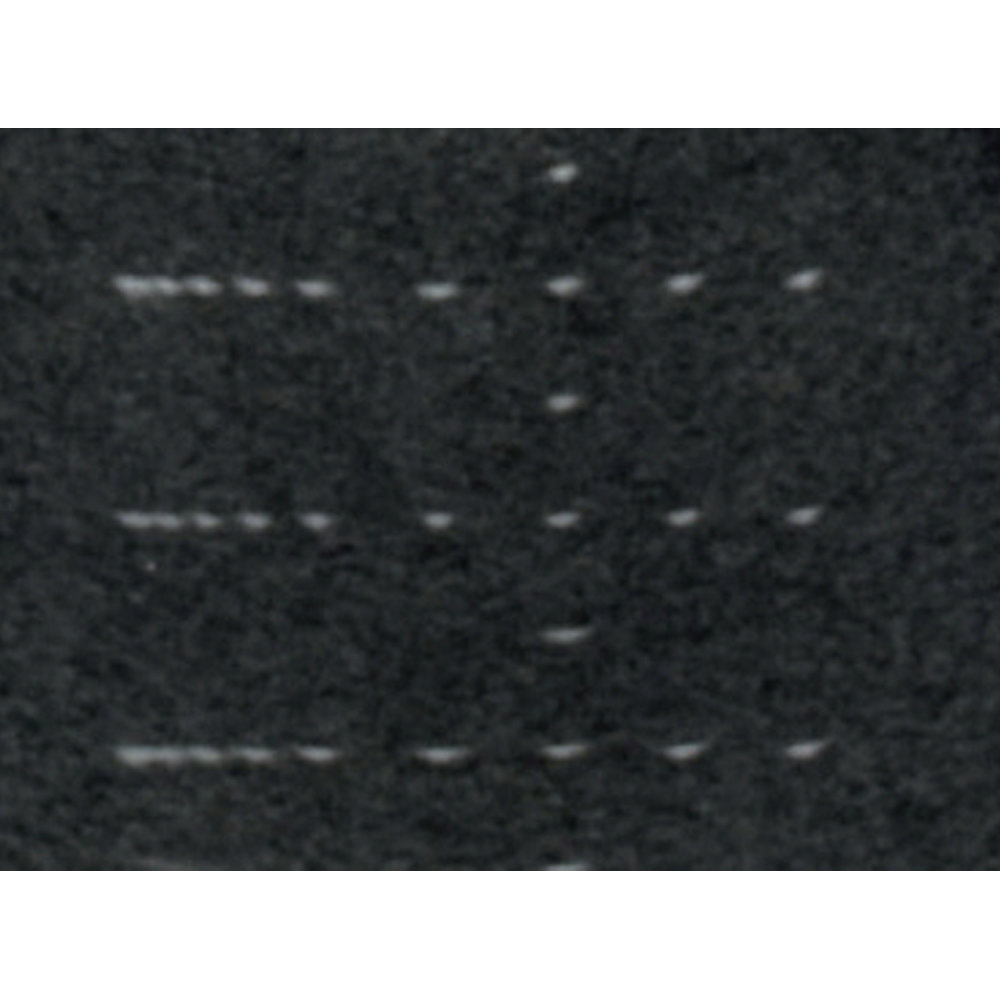

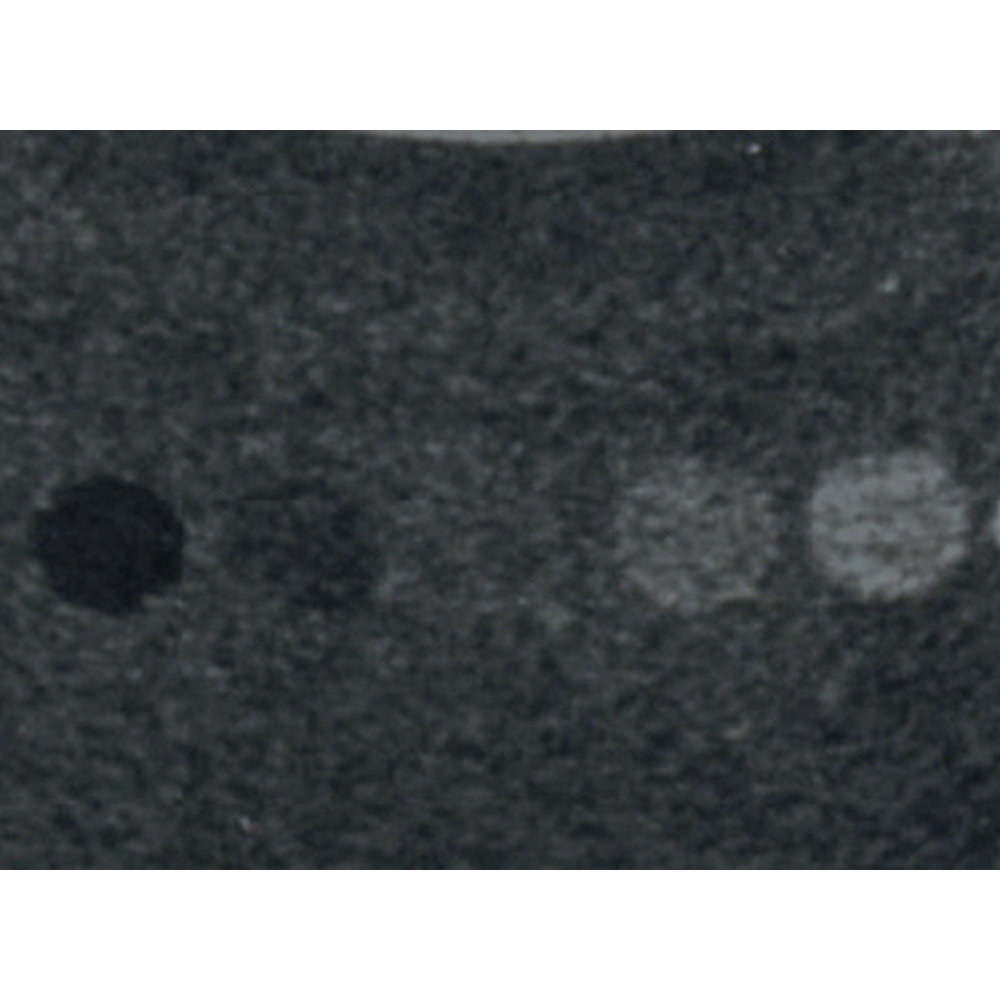

| Case / Pathology | Strings target, Cyst target, Close tange resolution, Gray scale, Axial resolution, Lateral resolution |
| Set includes | 1 phantom, 1 carrying case |
| Size (approx.) | 19 x 22 x 7 cm 7.6 x 8.8 x 2.8 in. |
| Packing size (approx.) | W35 x D36 x H24cm / W14 x D14 x H9.5in |
| Weight (approx.) | 3.6kg / 7.9lbs |
| Packing weight (approx.) | 6kg |
| Materials | Urethane elastomer, acryl, nylon/Latex free |
| Related products |
US-4 Breast Ultrasound QA Phantom
US-4B　Small Parts Basic QA Phantom |
| Attention coecient | 0.59 dB/ cm MHz at 25 degree C |
| Sonic velocity, Acoustic impedance | 1432m/ sec at 25 degrees C 1.38 rayl at 25 degree C |
| Recommended device | Convex transducer Linear transducer oters |
| Update | August 4, 2020 |
