| 41905-100 | Quote |
|---|
Now upgraded for fetal echocardiography training; Staple phantom for hands-on practice in second trimester screening
- Perinatal ultrasound
- Fetal Echocardiography
US-7B
Fetus Ultrasound Examination Phantom SPACE FAN-ST HEART
| Features | 1. The oval shape phantom abdomen can be set info four different positions 2. The fetus includes full skeletal structures and key organs 3. Includes an educational heart and a fetus demonstration model for comprehensive learning |
|---|---|

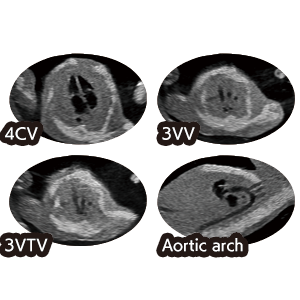

| Training skills / Applications | Fetal size assessment: BPD, AD, AC and FL / Measurement of amniotic fluid volume / Determination of fetus presentation (cephalic or breech) / Assessment of each body part -Head: skull and brain -Spine and limbs -Cardiac chambers, blood vessels and lungs / Assessment of umbilical cord and placenta position / Determination of sex (This phantom represents a male fetus) / Assessment of fetal heart size and cardiac axis | /Assessment of fetal heart vessels / Measurement and calculation of TCD and CTAR |
| Set includes | 1 mother body torso / 1 ultrasound pregnant uterus phantom /1 fetal heart model / 1 fetus demonstration model / 1 storage case /1 talcum powder |
| Size (approx.) | W40 x D31 x H22cm (Maternal abdominal body) W30 x D21 x H15cm (Fetus examination part) W15.7 x D12.2 x H8.7in (Maternal abdominal body) W11.8 x D8.3 x H5.9in (Fetus examination part) |
| Weight (approx.) | 7.3kg / 16.1lb |
| Packing weight (approx.) | 17kg / 37.5lbs |
| Materials | Soft resin/ Polyurethane elastomer/ Latex free |
| Related products |
MW48 Full Perinatal Patient Care Simulator "Hana"
MW34 Obstetric Examination Simulator |
| Production ＆ Development Supervision | Kiyoko Kabeyama RN, RM, PhD. Professor Midwifery & Women's Health, School of Human Health. Science, Graduate School of Medicine, Kyoto University / Haruto Egawa, PhD. National Hospital Organization Kyoto Medical Center. Department of Obstetrics, Head Physician or Medical Director |
| ANATOMY | UTERUS: amniotic fluid/ placenta / umbilical cord / FETUS: skeletal structure / brain with septum lucidum / lateral ventricles and cerebellum lungs / spleen / bladder / stomach / liver / kidneys / aorta / umbilical vein / umbilical artery / external genitalia / aortic arch / trachea / ascending artery / superior vena cava / descending artery / heart (atrial septum / ventricular septum / foramen ovale) |
| Recommended device | Convex transducer |
| Update | May 13, 2026 |
