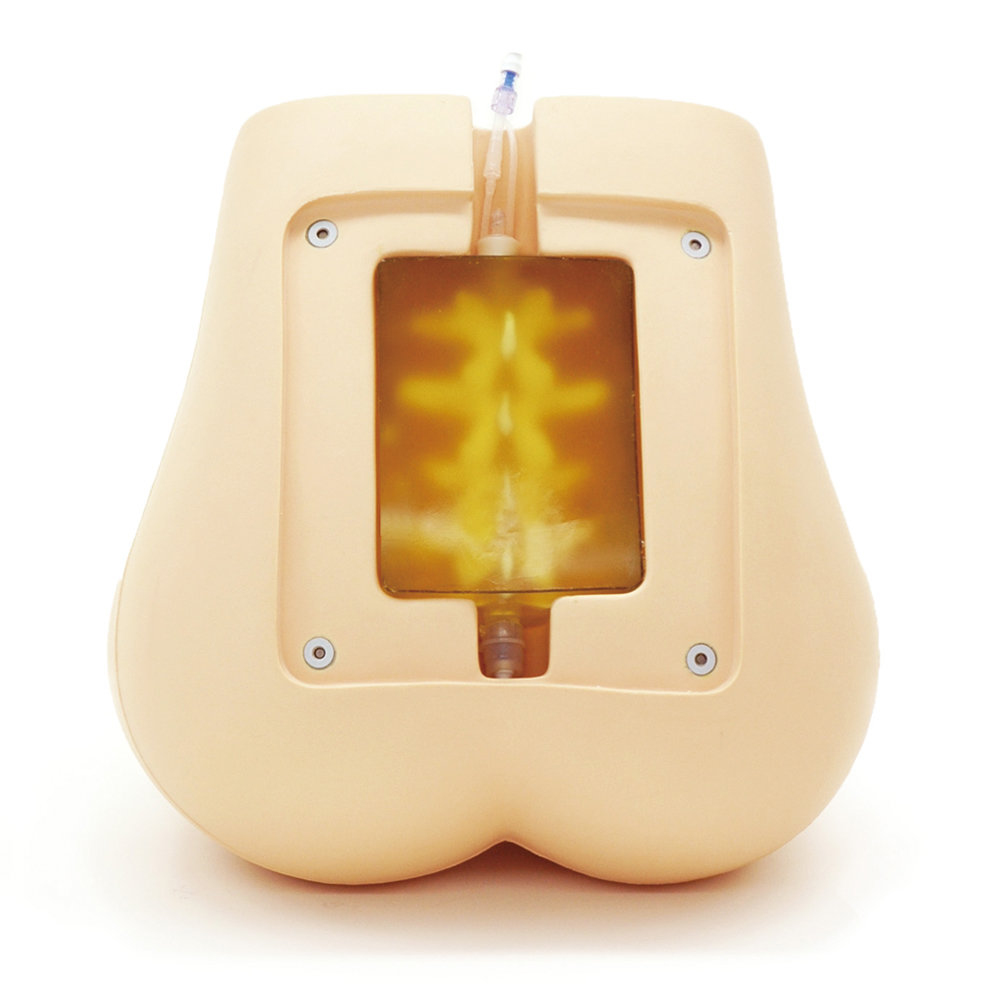

Ultrasound Compatible Lumbar Puncture/ Epidural Simulator

11348-500   Quote

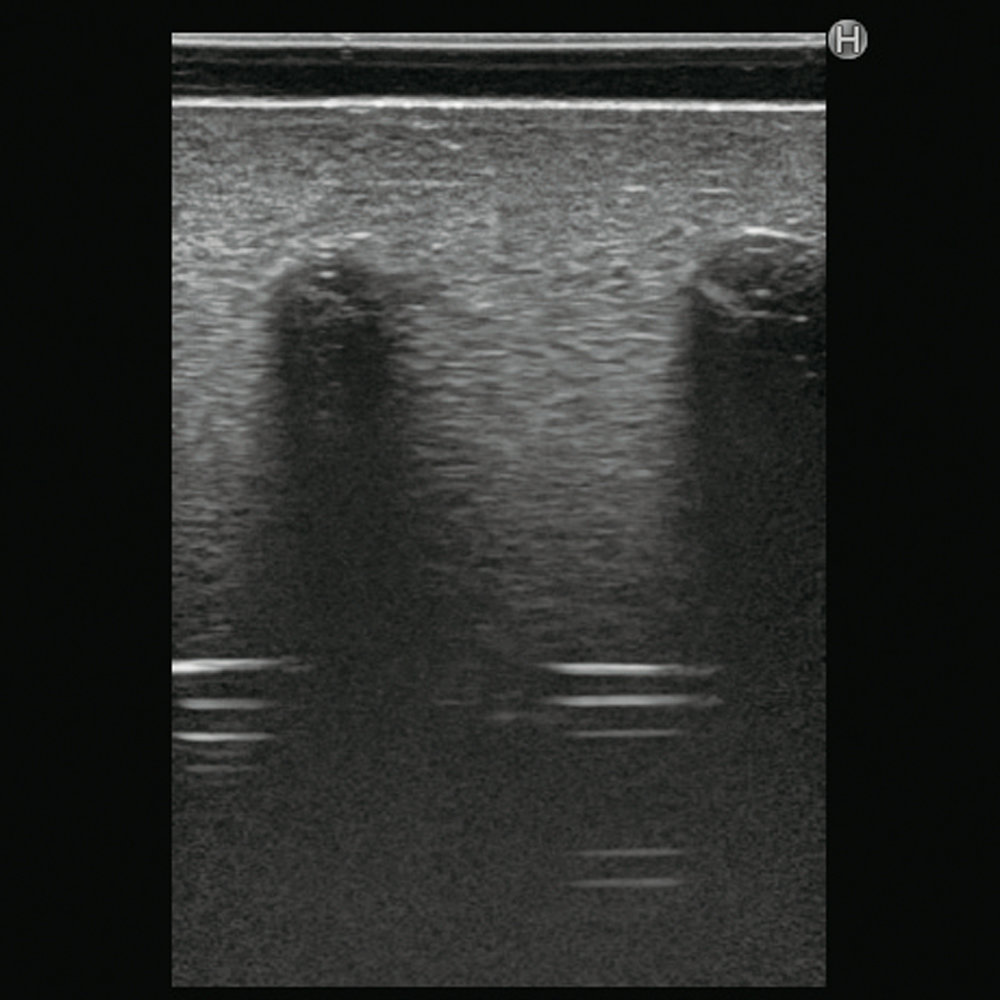

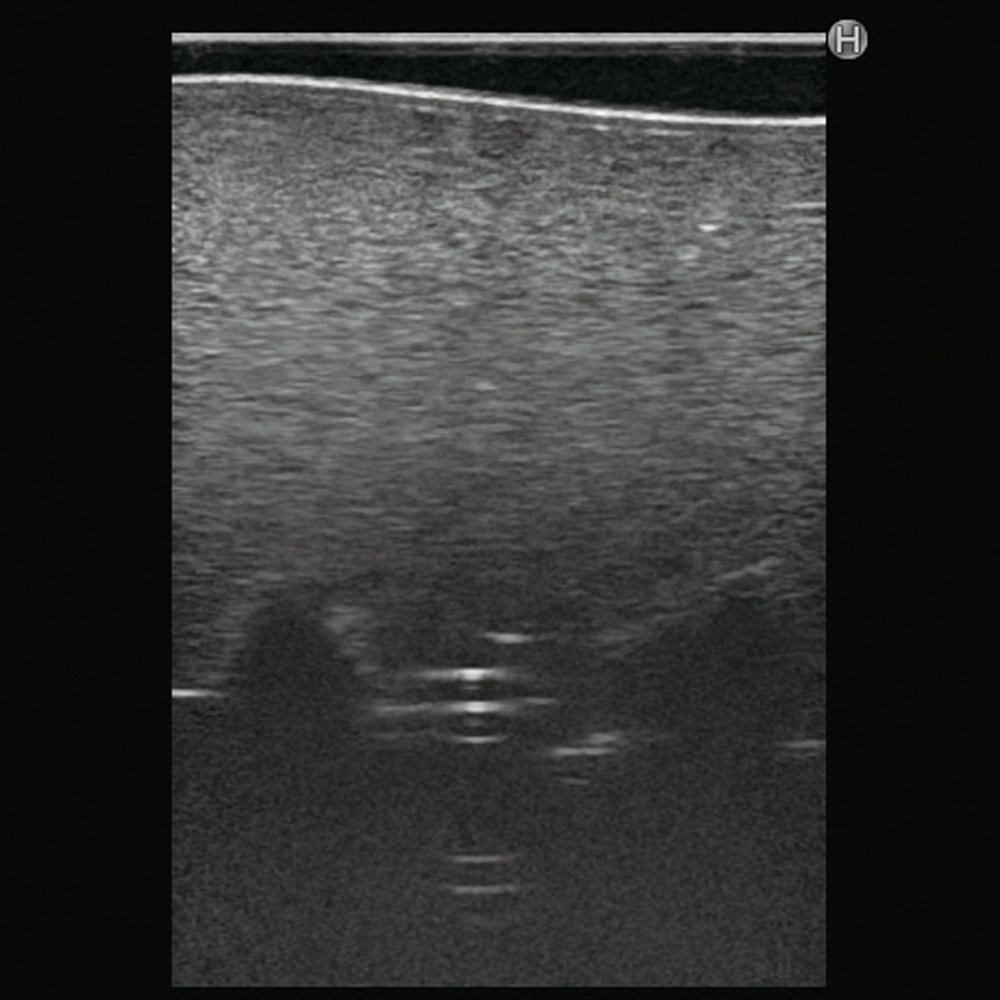

Lumbar puncture training with ultrasound guidance / Anatomically correct puncture block offers excellent ultrasound images

  • Spinal tap
  • CSF
  • epidural analgesia
  • ultrasound guided
Features 1. Adjustable to an upright or lateral position.
2. Translucent block makes the needle trace visible. Interchangeable parts for other landmark and fluoroscopic procedure training
Training skills / Applications Ultrasound-guided lumbar puncture / Ultrasound-guided epidural anesthesia / CSF collection and CSF pressure measurement
Set includes 1 lumbar region model / 1 ultrasound lumbar puncture-epidural block / 1 ultrasound lumbar region skin cover / 1 irrigation bottle/ 1 two way support bases /1 irrigation bag / 1 syringe / 1 instruction manual / 1 storage case
Size (approx.) W33 x D21 x H30 cm / W13 x D8.3 x H11.8 in
Packing size (approx.) W52 x D44 x H30 ㎝ / W20.5 x D17 x H12 in
Weight (approx.) 3.15kg / 1.43lb
Packing weight (approx.) 7kg / 15.4lb
Materials Soft resin, polyurethane elastomer / Latex free
Replacement parts 11348-190 ultrasound lumbar puncture-epidural block / 11348-230 ultrasound lumbar region skin cover for M43E
Optional parts 11348-090 1 LP block (normal CSF)/ 11348-110 1 LP block (obesity CSF)/ 11348-120 1 LP block (senior CSF)/ 11348-130 1 LP block (senior obesity CSF)/ 11348-140 1 epidural block/ 11348-150 1 lumbar region skin cover
Related products M43B Lumbar Puncture Simulator II
PH-51 Lumbar Spine Fluoroscopy Training Phantom
MW3 Epidural Anesthesia Simulator
Recommended Devices Epidural needle: 18G / Spinal needle: 21G
Notes Ultrasound machine and needles are not included.
Update October 1, 2020
