Difficult Airway Management Simulator -Assessment System-


11390-000 11389-999 for international version Quote

Enhance your intubation technique to ensure and maximize patient safety

Features 1.Objective feedbacks are given in two ways:/- Intubation result: assesses life-saving technique/Skills assessment: assesses patient experience

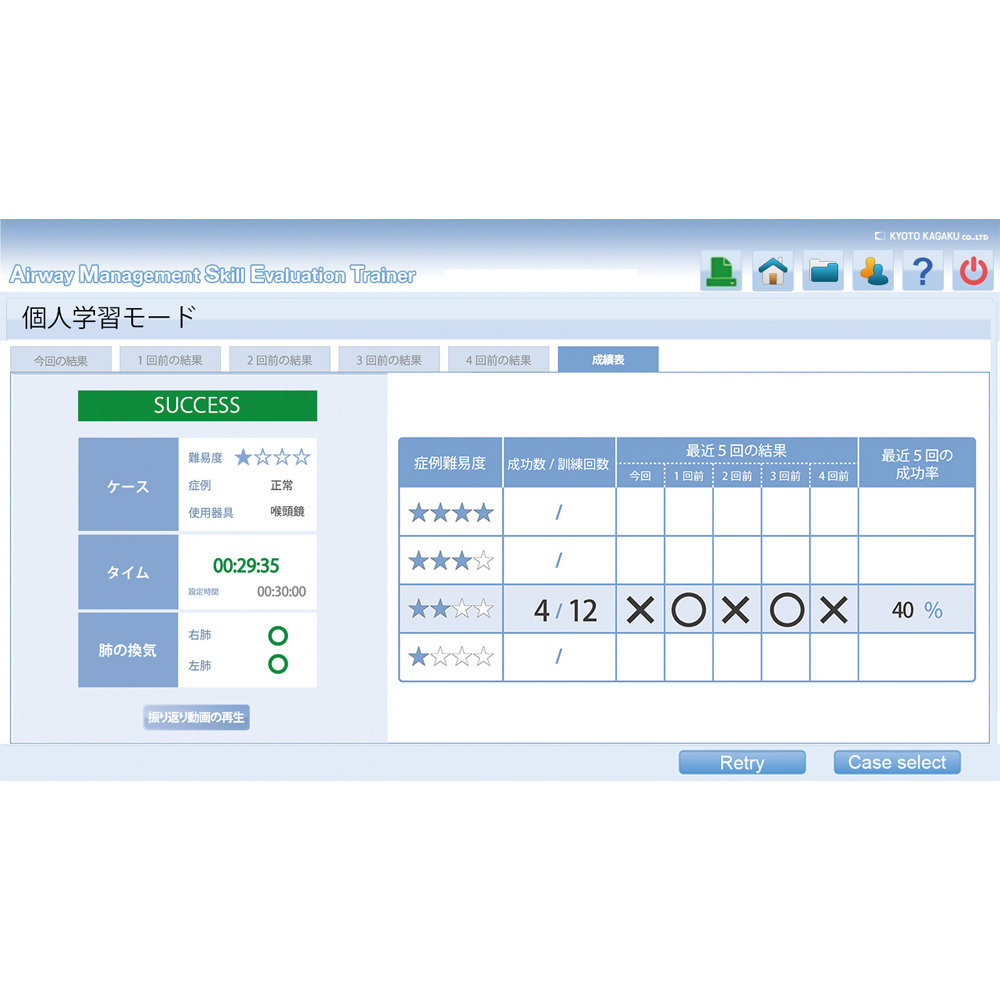

2.Assessment criteria feedback is quantitatively monitored and displayed./ Each session can be saved and stored for review and debriefing./- Skills assessment: assesses patient experience
3.A variety of difficult airway conditions can be set by touch panel control. Convenient all-in-one unit
Training skills / Applications Tracheal intubation
Intubation and ventilation on difficult airways
Case / Pathology Normal
Rigid Neck

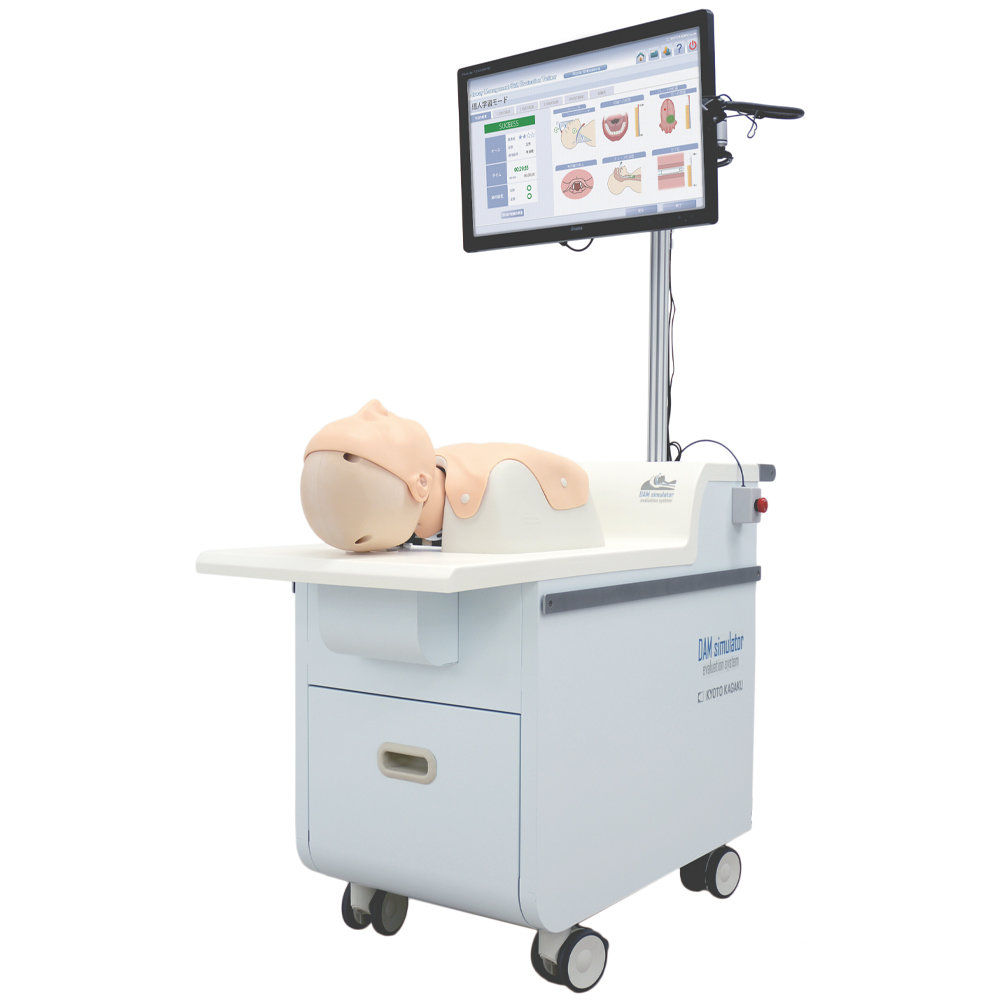

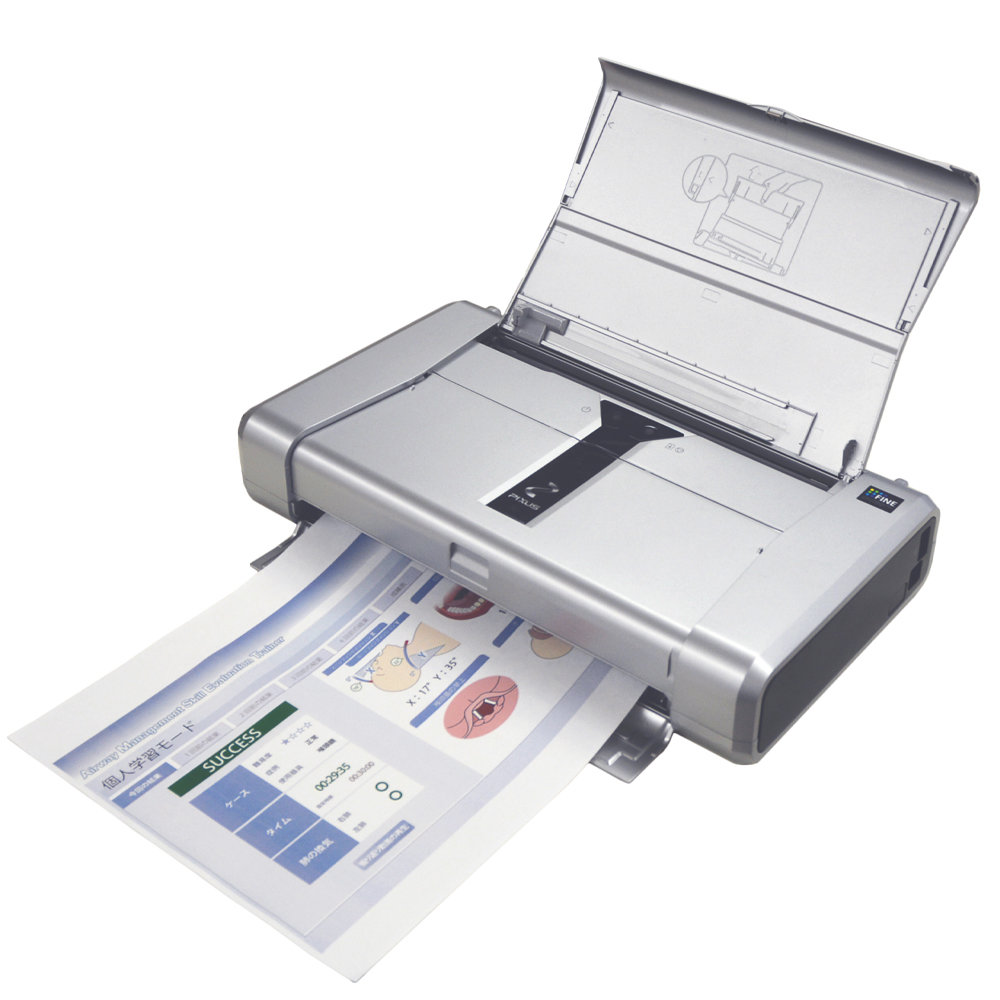

Set includes SET INCLUDES/1 unit base/including 1 video camera/1 monitor, 1 manikin/1 printer/1 stereo mini plug/1 keyboard/1 lubricant for manikin/1 instruction manua
Size (approx.) W50 x D110 x H160cm / W19.7 x D43.3 x H63in
Packing size (approx.) W133x D73x H133㎝/W52x D29x H52in
Weight (approx.) 82 kg /181lb
Packing weight (approx.) 125.5kg / 276.7lb
Power source AC100-240V, 50/60 Hz
Power requirements (approx.) 80W(120 VA)
Materials Soft resin/Latex free
Replacement parts 11392-040 1 chest skin/11392-050 5 pairs of lungs/ 11392-060 5 stomachs/11392-090 1 face mask/11390-010 sensor-installed tongue/11390-020 sensor(blade force and position)
Related products MW13 Difficult Airway Management Simulator -Training Model-
MW14 Difficult Airway Management Simulator -Demonstration Model-
MW19 Difficult Airway Management Simulator for Bronchofiberscopy
Production & Development Supervision Atsuo Takanishi, Laboratory of Faculty of Science and Engineering, Waseda University
Recommended Devices Macintosh laryngoscope: blade size 4 / Endotracheal tube: internal diameter 7.5mm / Video laryngoscope: AWS-S200
CE certified/CE Certification? Yes
Update October 20, 2020
