| 41941-000 | Quote |
|---|
Water Equivalent Material, various inserts and empty bottles enable to
verify the appropriate Multi-Energy CT settings
PH-75A
Multi Energy CT Quality Assurance Phantom (TR-J)
| Features | 1.Phantom using innovative Water Equivalent Material / 2.Empty bottles enable to put various items and check how they / 3.react to Multi Energy/ 4.Save time and efforts to produce custom-made water phantoms / 5.Two different sizes of body. (TR-I, TR-J) |
|---|---|
| Training skills / Applications | ME-CT image analysis protocol / Metal artifact reduction / Reduction of contrast media |

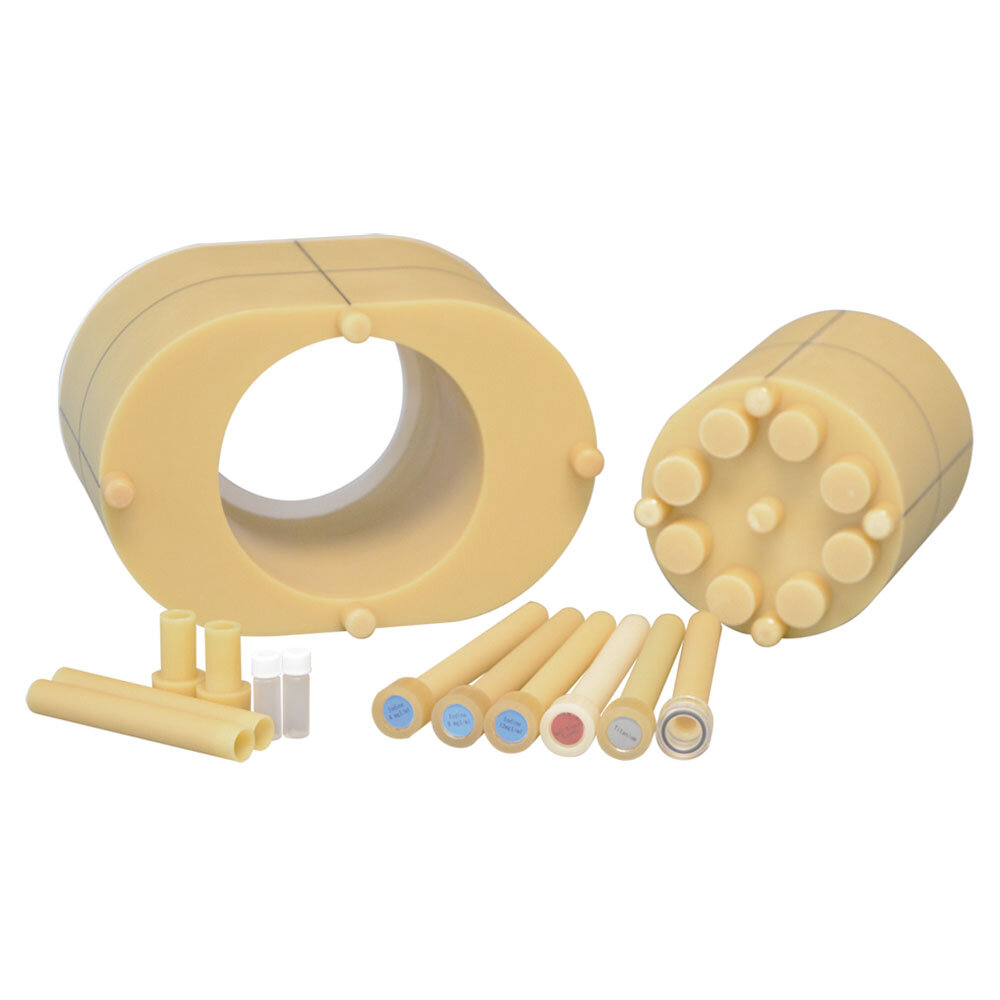

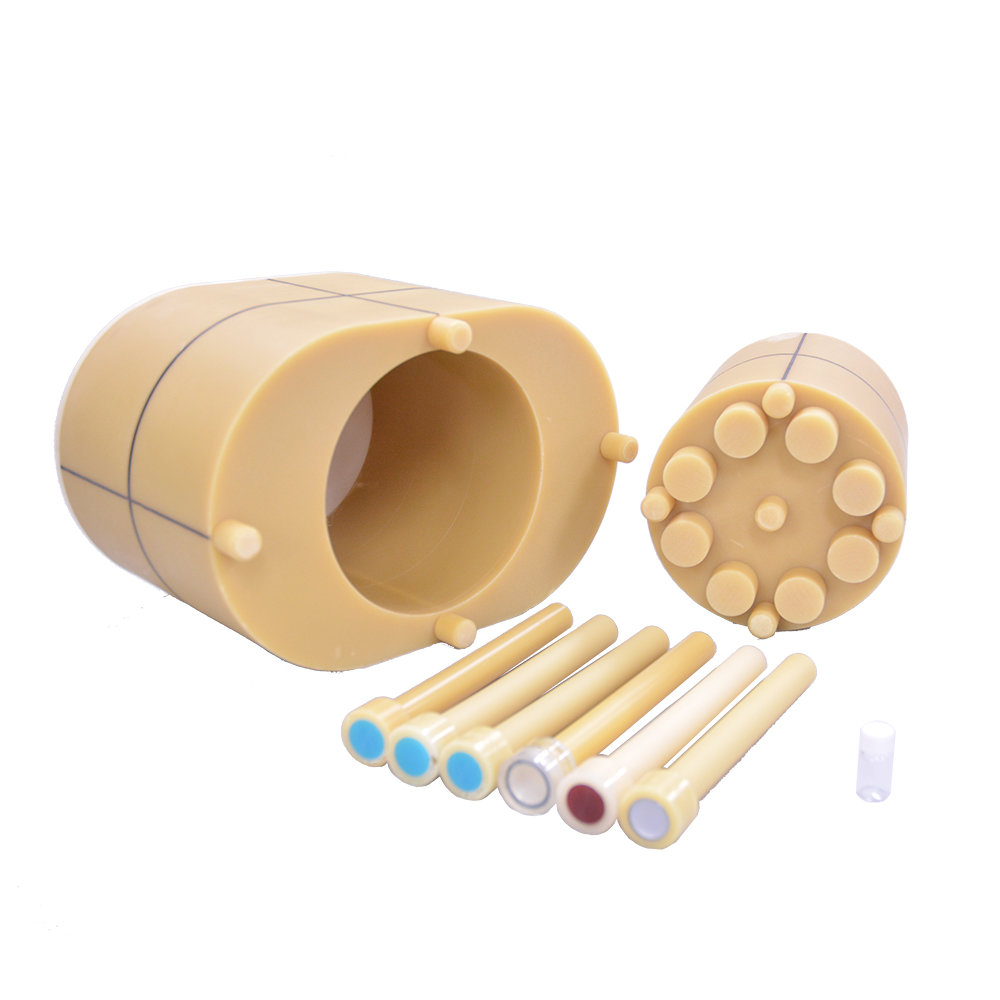

| Set includes | 1 truck phantom / 1 internal cylindrical phantom / 9 filling rods for dosimeter holes / 8 WEM inserts / 3 iodine inserts (4, 8, 12mgl/mL) / 1 titanium insert / 1 soft tissue insert / 1 water container insert/ 20 empty sample bottle / 8 spacers for sample bottle / manual |

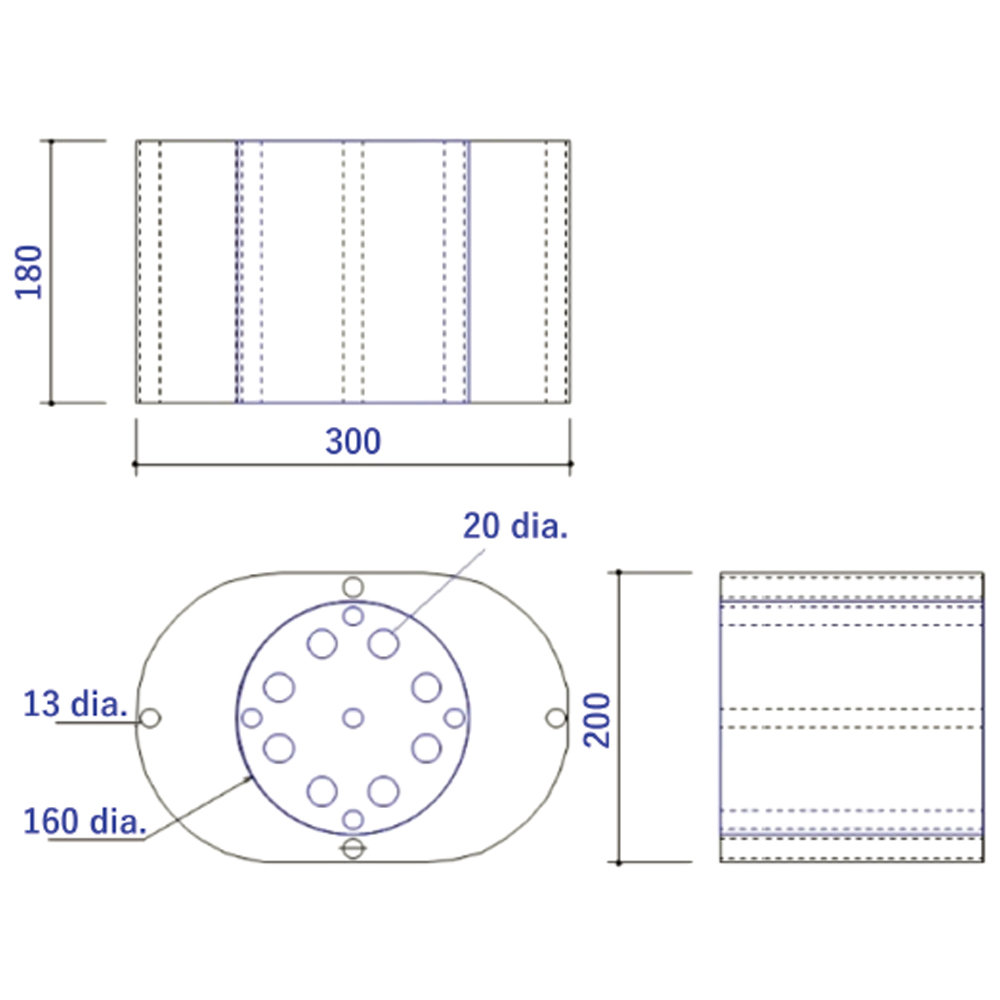

| Size (approx.) | [TR-J] Ｗ30×D18×H20cm |
| Packing size (approx.) | W44 x D36 x H42cm / W17.3 x D14.2 x H16.5in |
| Weight (approx.) | TR-J : 15.5kg |
| Packing weight (approx.) | W30.0 x D20.0 x H18.0cm/W11.8 x D7.9 x H7.1 in |
| Materials | Polyurethane |
| Optional parts | Angle adjustment holder |
| Related products |
Multi Energy CT Quality Assurance Phantom (TR-I))
|
| Production ＆ Development Supervision | Katsuhiro Ichikawa, Ph.D., / Institute of Medical, / Pharmaceutical and Health Sciences, / Kanazawa University |
| Update | February 5, 2025 |
