PH-75C

Multi Energy CT Quality Assurance Phantom (TR-A)

41941-200   Quote

“Aqua Slab” CTQA phantom with equidistance placement of inserts, meeting international recommendation.

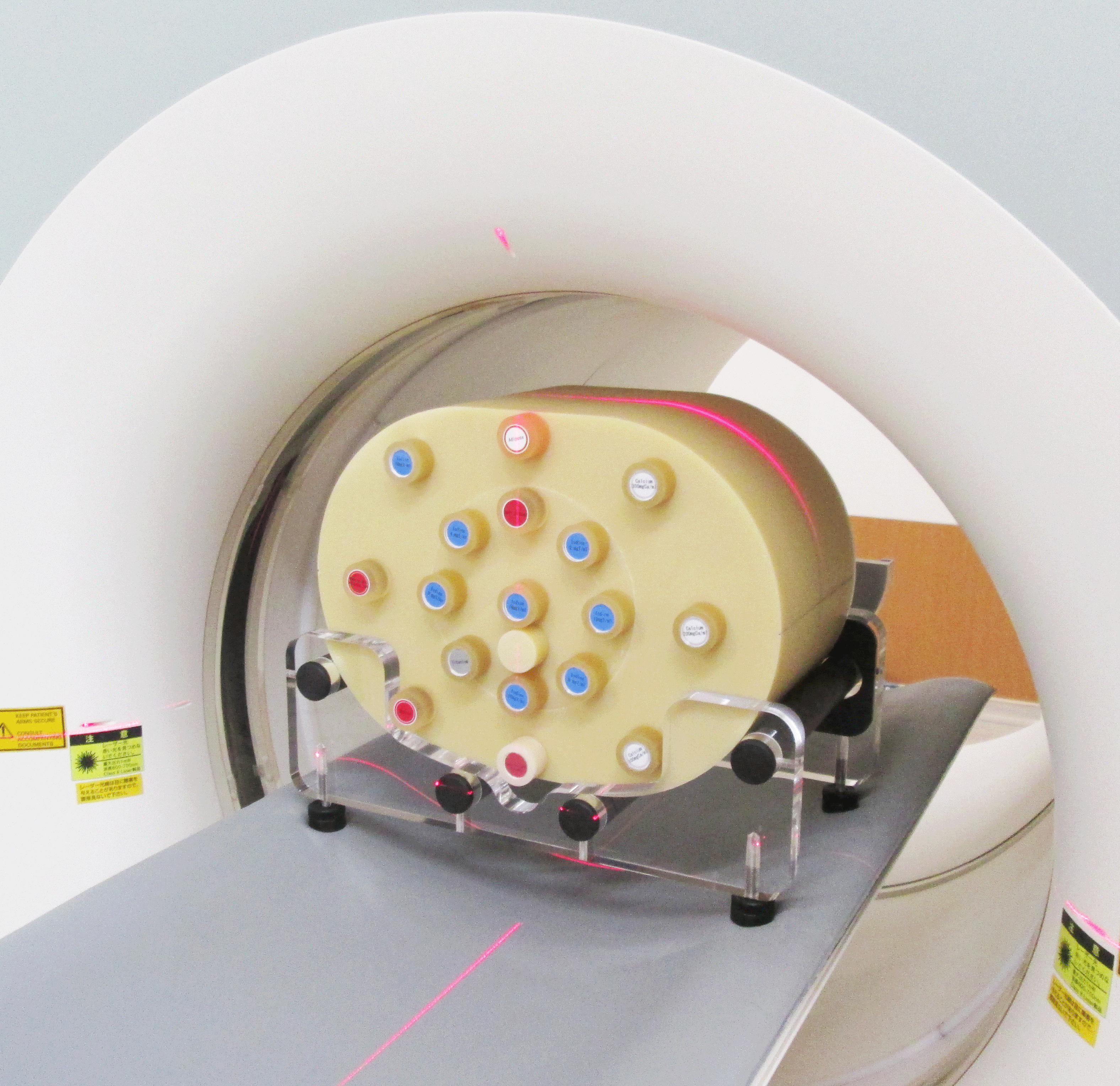

Features 1.The sectional areas of the assembled phantom with the truck phantom and the independently used inner phantoms are equal to those of the CTDI body and the head phantom respectively.

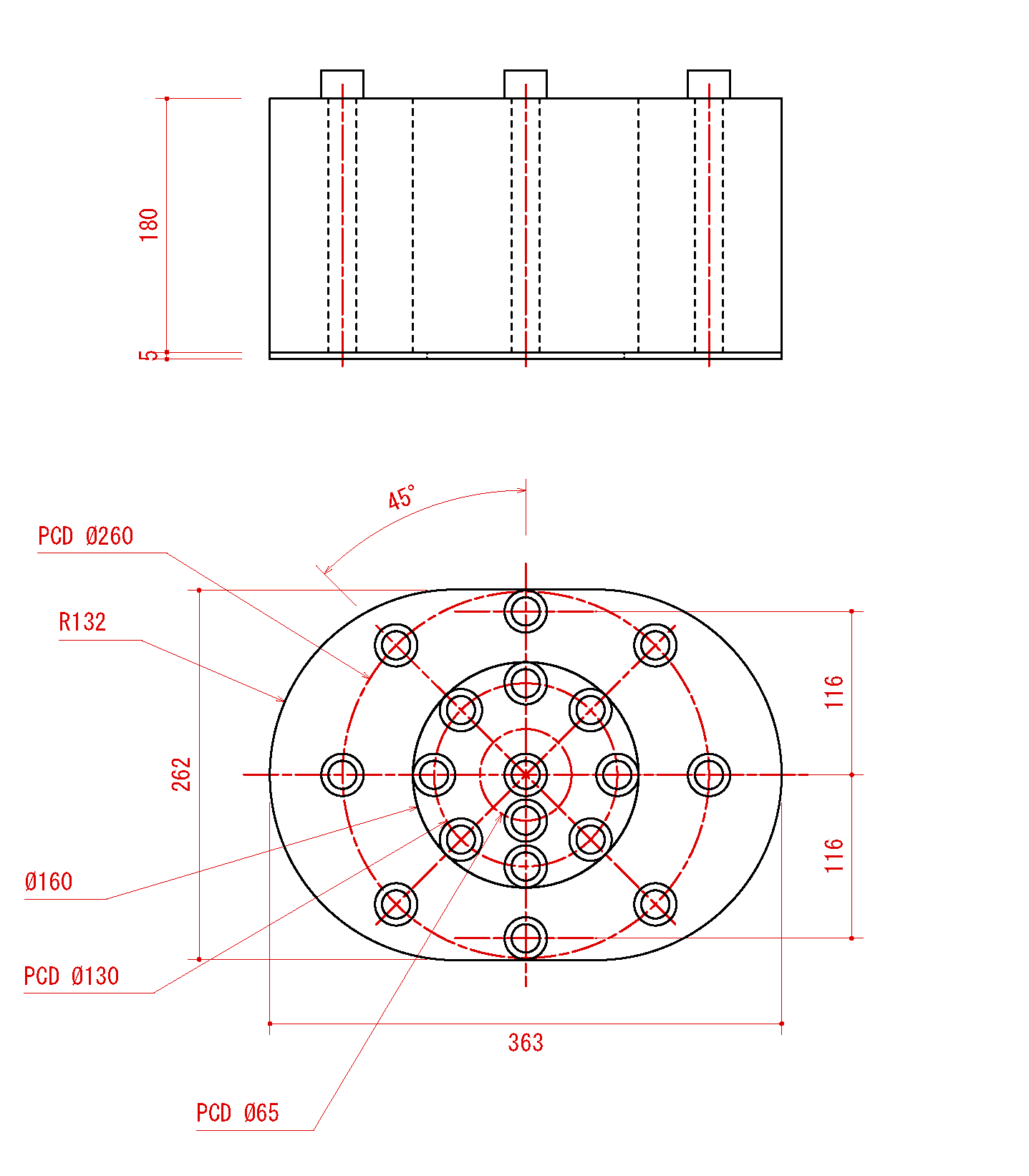

2.The holes to accommodate sample inserts and dosimeters for evaluation are placed concentrically at equidistance from the isocenter, along with the one placed off the center, meeting international recommendation for CTQA.
Training skills / Applications ME-CT image analysis protocol / Metal artifact reduction / Reduction of contrast media
Set includes 1　　phantom body (cylinder phantom / truck phantom)
17　 Aqua Slab inserts Φ20mm
1　　titunim insert Φ12mm
1　　soft tissue insert (liver equivalant) Φ20mm
4　　calcium inserts: ４ steps of concentration ( 50 / 100 / 200/300) mgCa/mL x１each Φ12mm
6　　Iodin inserts: ６steps of concentration（0.2 / 0.5 / 1.0 / 2.0 / 4.0 / 8.0） mgI/mLｘ１ each Φ12mm
1　　water container Φ12mm
20　　empty bottle
8　　bottle holder with spacer
1　　rod holder
1　　storage case
Size (approx.) Ｗ36.3 x D18 x H26.2cm
Packing size (approx.) W36.3 x D26.2 x H18.0 cm/W14.3 x D10.3 x H7.1 in
Weight (approx.) 23kg
Packing weight (approx.) W44 x D36 x H42cm / W17.3 x D14.2 x H16.5in
Materials Polyurethane
Optional parts Angle adjustment holder

【optional inserts】
sodium urate insert（length 50ｍｍ）/calcium pyrophosphate insert / DXA evaluation insert（0.6、0.9、1.2g/cm2）* on unit type / uric acid insert /
gadolium insert / muschle (ICRP　Publication 23) insert/ adipose (ICRP　Publication 23) insert / total soft tissue (ICRP　Publication 23) insert
Related products Multi Energy CT Quality Assurance Phantom (TR-J)
Production ＆ Development Supervision Katsuhiro Ichikawa, Ph.D., / Institute of Medical, / Pharmaceutical and Health Sciences, / Kanazawa University
