PH-2E

CT Whole Body Phantom with Pathologies

Start

41350-700 storage case excl. Quote
41350-800 Japanese market only Quote

Implement theory with practice with pathological findings in this hands-on training phantom

  • anthropomorphic phantom
  • PBU-60
Features 1.Radiology absorption and HU number approximate to human body
2. Main joints have close-to human articulation
3. Phantom can be disassembled into 10 individual parts
Training skills / Applications Plain X-ray / CT /Basic patient positioning

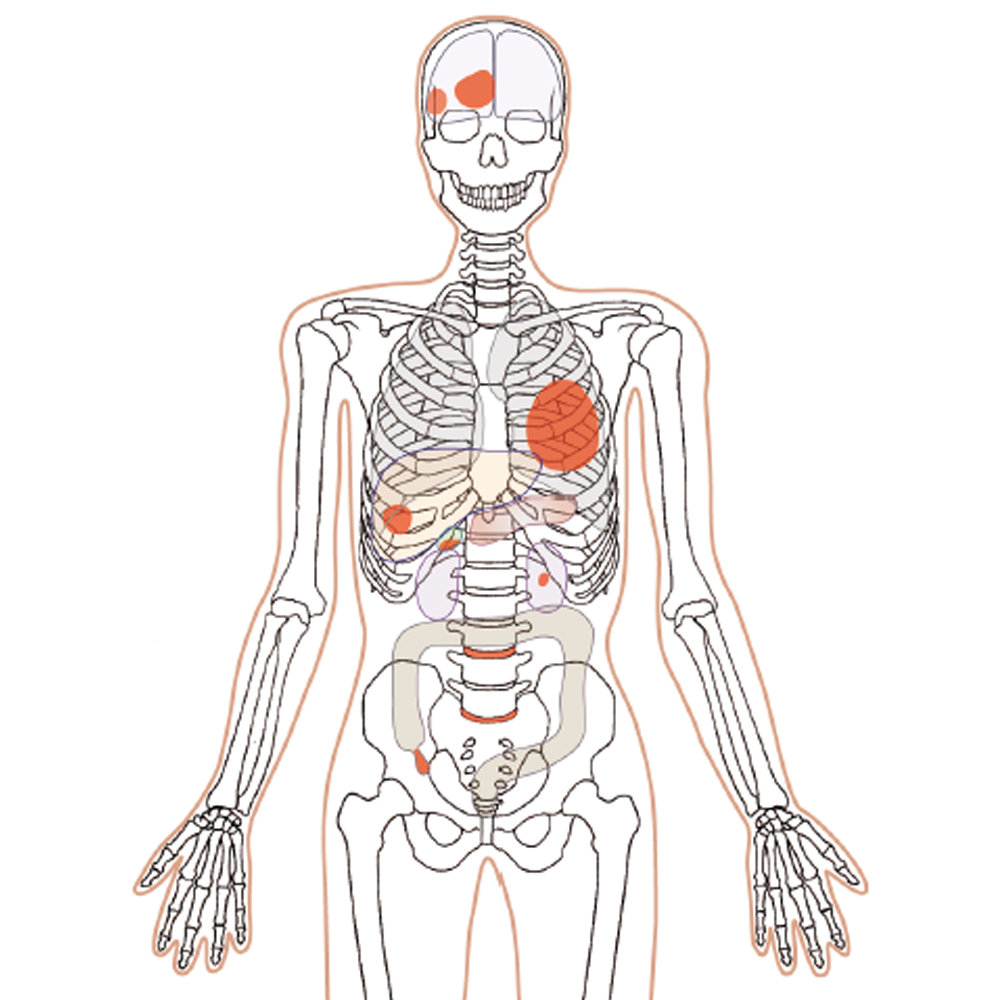

Case / Pathology Refer to PDF( Anatomy and Pathologies)
Set includes 1 whole body phantom / 1 head supporter / 1 flat head screwdriver/ 1 set of samaple X-ray / manual

Height (approx.) 165 cm /65in
Packing size (approx.) W92 x D57 x H38cm, W37 x D23 x H15in / W90 x D63 x H22cm, W36 x D25 x H9in / W89 x D57 x H16cm, W35 x D23 x H6in
Weight (approx.) 50 kg / 110 lb
Packing weight (approx.) 80 kg / 176 lb
Materials Soft tissue: urethane based resin (density: 1.06)
Synthetic bone: epoxy resin (density: 1.31)
Skull:epoxy resin (density: 1.11)
*Phantom has no metal parts or liquid structure
Replacement parts 41350-200-02 right hand for PH-2&2B / 45350-200-03 left hand PH-2&2B  / 41350-200-04 right upper arm for PH-2&2B / 41350-200-05 left upper arm for PH2&2B / 41350-200-12 right thigh for PH2&2B /41350-200-13 left thigh for PH2&2B / 41350-200-14 right foot for PH2&2B / 41350-200-15 left foot for PH2&2B
Optional parts 41363-070 storage cases (consist of 2 boxes) / 41350-200-16  body plates for PH-2/2B (BMI 32) / 41350-200-17  body plates for PH-2/2B (BMI 40)
Related products PH-2D Bone Fracture Pediatric Phantom PBU-70B
PH-2B CT Whole Body Phantom "PBU-60"
PH-60 Tough Whol;e Body Phantom "PBU-90 RUGGED"
PH-2 Whole Boday Phantom "PBU-50"
41350-000-11 Fractured Hand/Forearm Phantom for PH2/2B
Publication references Kim, S., & Jung, H. (2013). A Study on Performance of Low-Dose Medical Radiation Shielding Fiber (RSF) in CT Scans. International Journal Of Technology, 4(2), 178-187. doi:10.14716/ijtech.v4i2.107
Update July 28, 2020
