PH-2B

CT Whole Body Phantom "PBU-60"

Start

41350-200 storage case excl. Quote
41350-900 with storage cases Quote

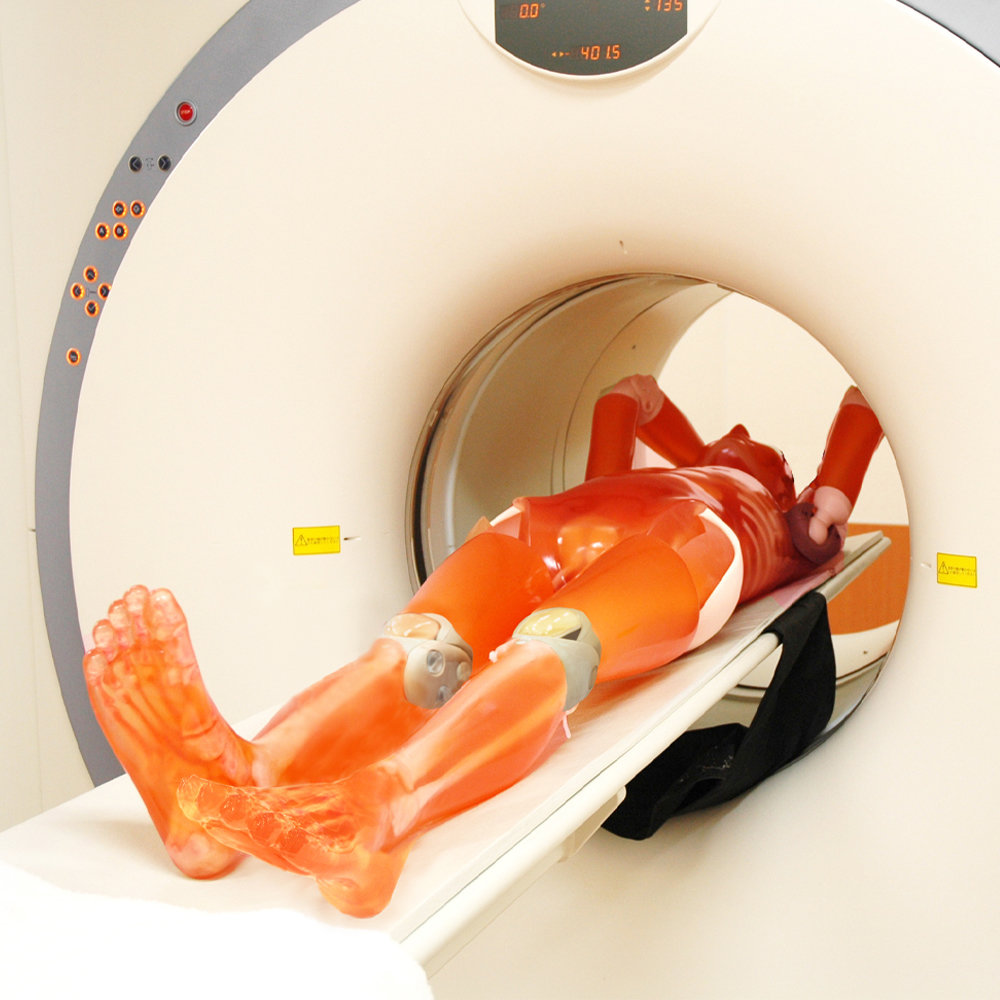

A unique, life size whole body phantom for CT provides a variety of educational application
as well as visual evaluation in finding out optimal scanning conditions

Features 1. Radiology absorption and HU number approximate to human
body.
2. Main joints have close-to human articulation
3. Phantom can be disassembled into 10 individual parts

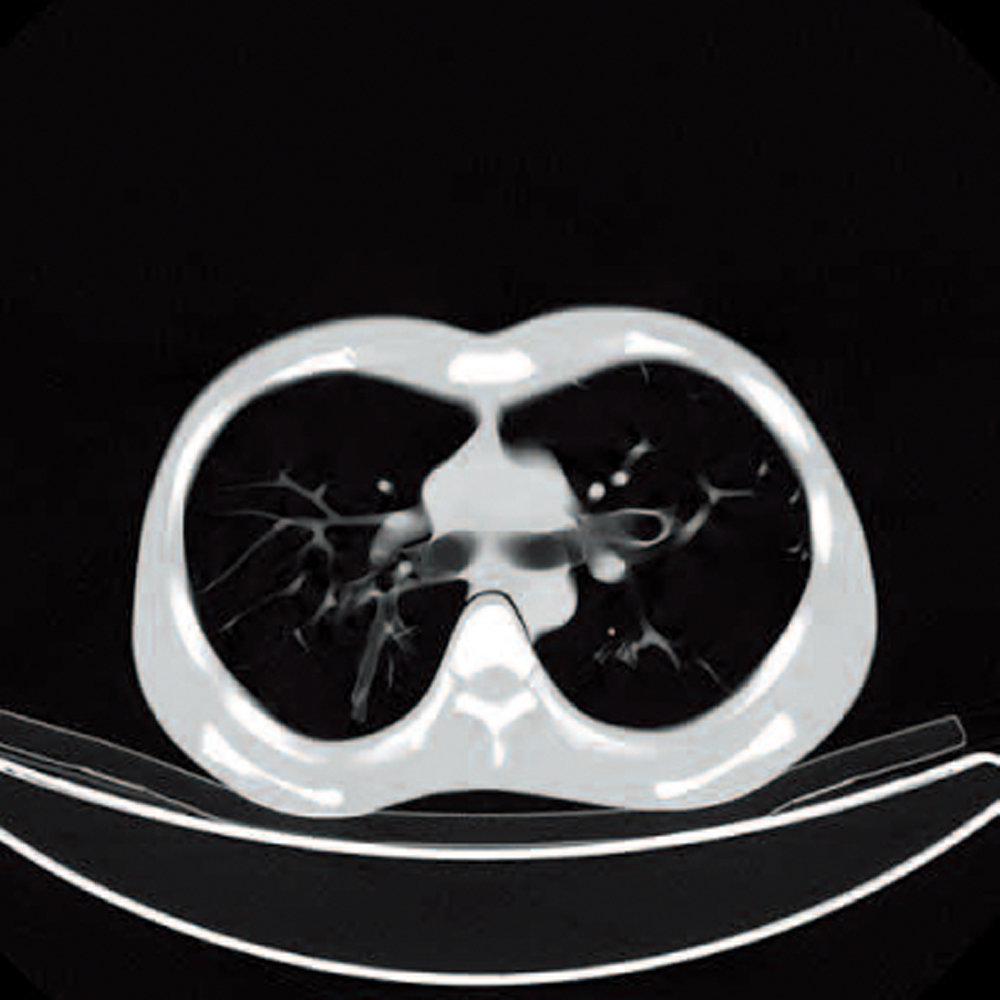

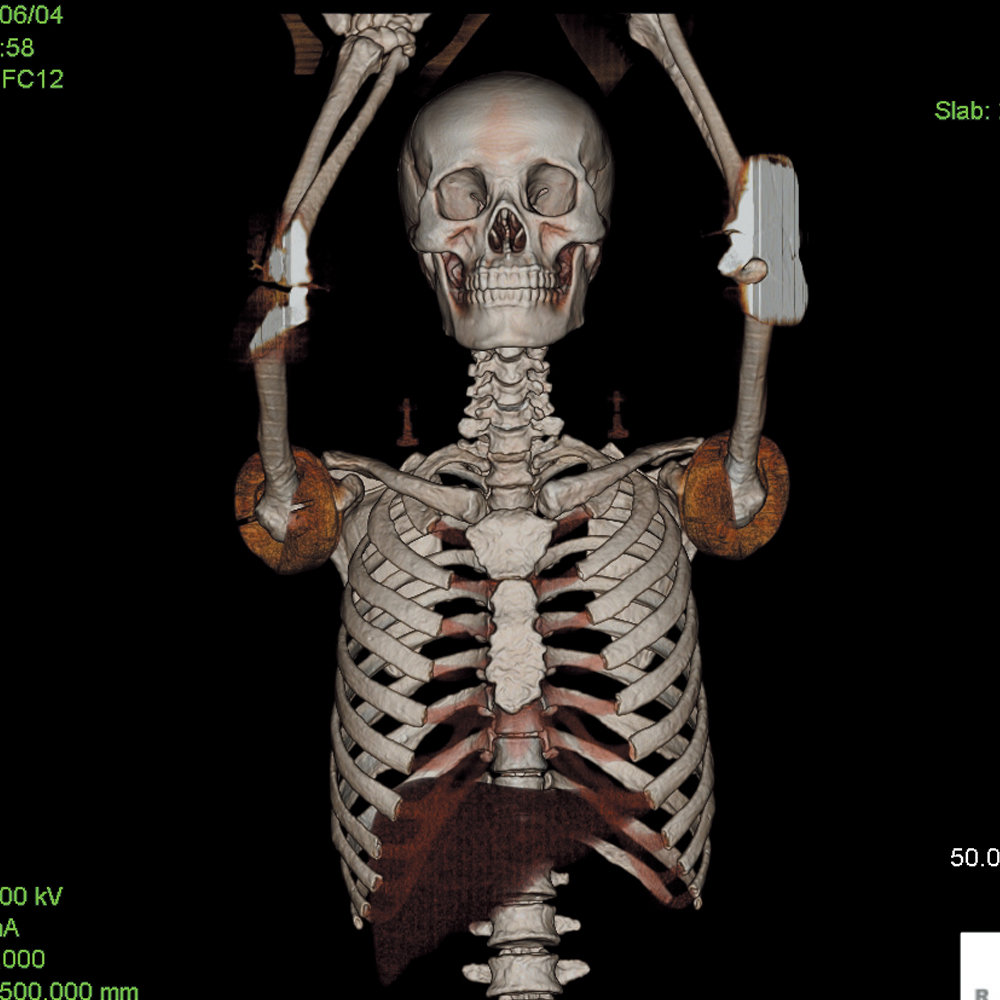

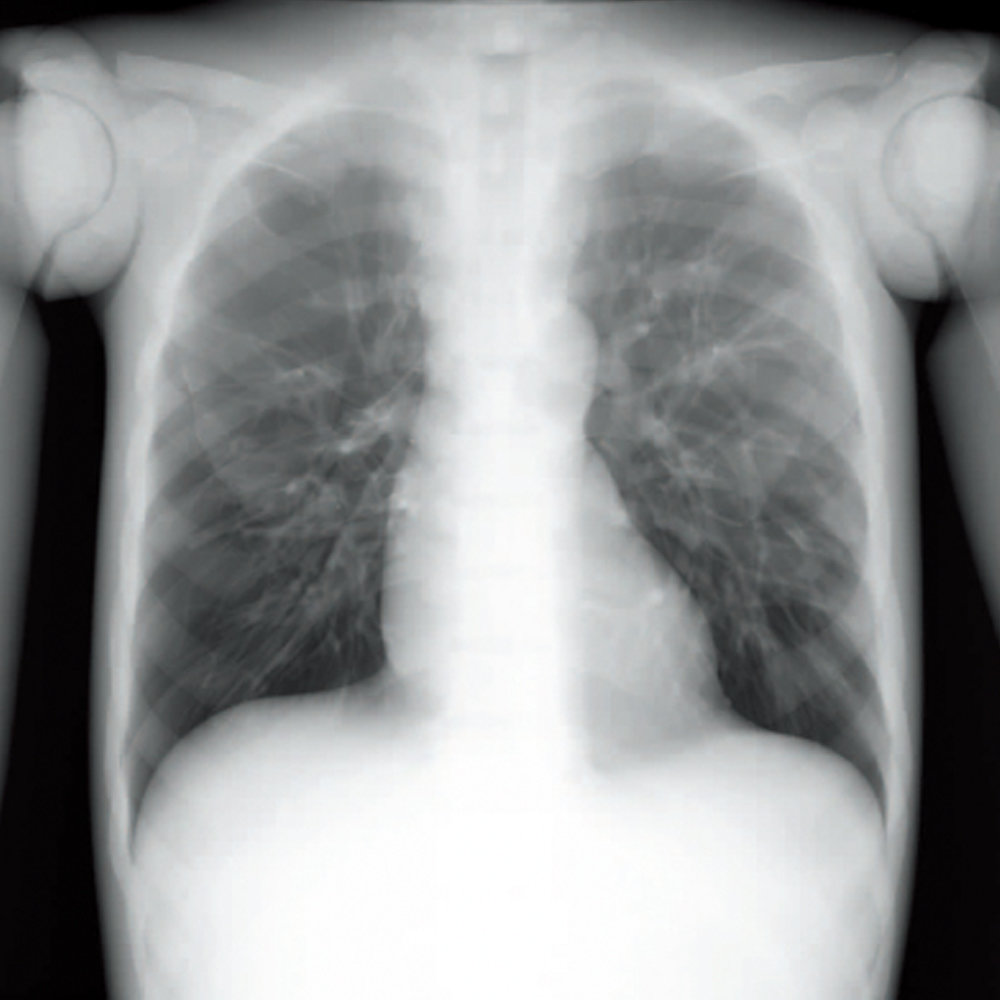

Training skills / Applications Plain X-ray / CT /Basic patient positioning
Set includes 1 whole body phantom / 1 head supporter / 1 flat head screwdriver/ 1 set of samaple X-ray / manual
Height (approx.) 165 cm /65in
Packing size (approx.) W92 x D57 x H38cm, W37 x D23 x H15in / W90 x D63 x H22cm, W36 x D25 x H9in / W89 x D57 x H16cm, W35 x D23 x H6in
Weight (approx.) 50 kg / 110 lb
Packing weight (approx.) 80 kg / 176 lb
Materials Soft tissue: urethane based resin (specific gravity: 1.06)
Synthetic bone: epoxy resin (specific gravity: 1.31)
*Phantom has no metal parts or liquid structure
Replacement parts 41350-200-01 head for PH-2B / 41350-200-02 right hand for PH-2&2B / 45350-200-03 left hand PH-2&2B  / 41350-200-04 right upper arm for PH-2&2B / 41350-200-05 left upper arm for PH2&2B / 41350-200-06 torso for PH2B / 41350-200-12 right thigh for PH2&2B /41350-200-13 left thigh for PH2&2B / 41350-200-14 right foot for PH2&2B / 41350-200-15 left foot for PH2&2B
Optional parts 41363-070 storage cases (consist of 2 boxes) / 41350-200-16  body plates for PH-2/2B (BMI 32) / 41350-200-17  body plates for PH-2/2B (BMI 40)
Publication references Kim, S., & Jung, H. (2013). A Study on Performance of Low-Dose Medical Radiation Shielding Fiber (RSF) in CT Scans. International Journal Of Technology, 4(2), 178-187. doi:10.14716/ijtech.v4i2.107
Update July 28, 2020
