PH-50B

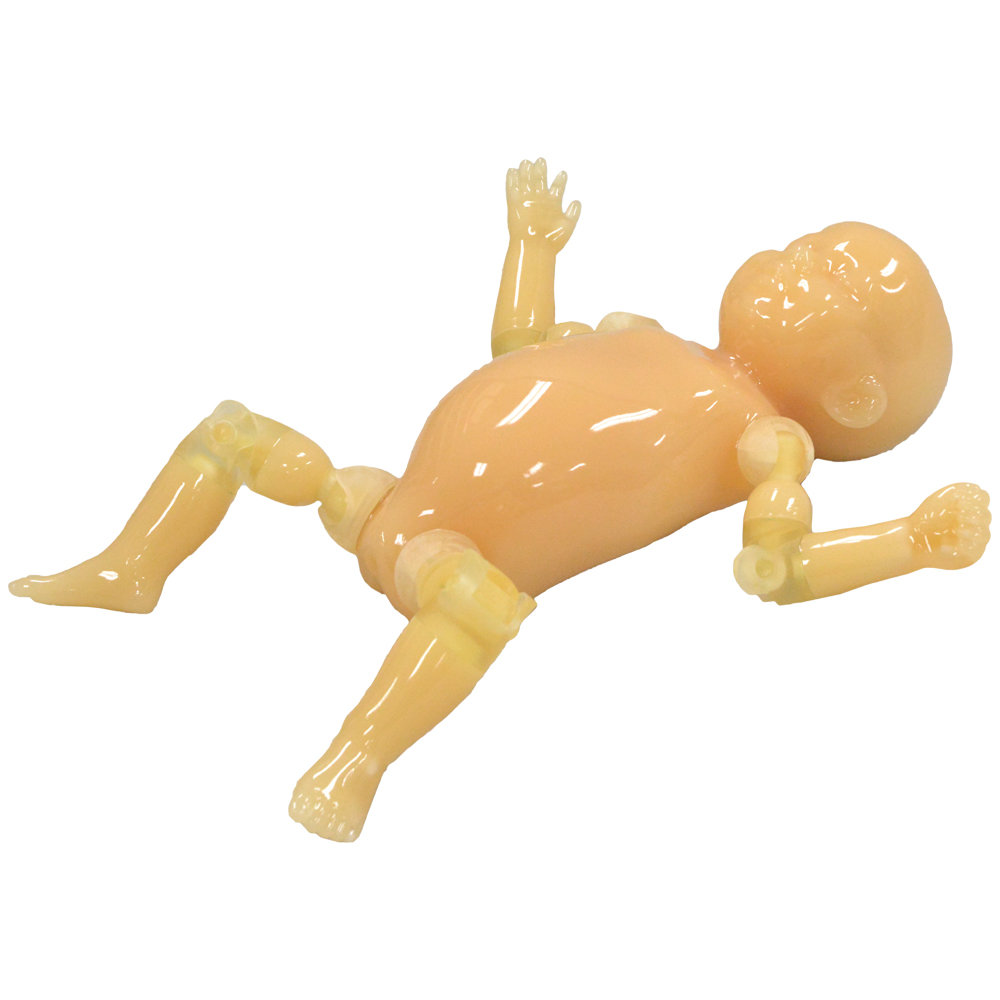

Newborn Whole Body Phantom "PBU-80"

41912-100   Quote

A brand-new neonate for CT has come into the world

Features 1. Limbs rotate 360 degrers at shoulders and hip joints
2. Left hand is clenched and right hand is open
3. Kyoto Kagaku original human tissue substitute with HU of average newborn (HU30)

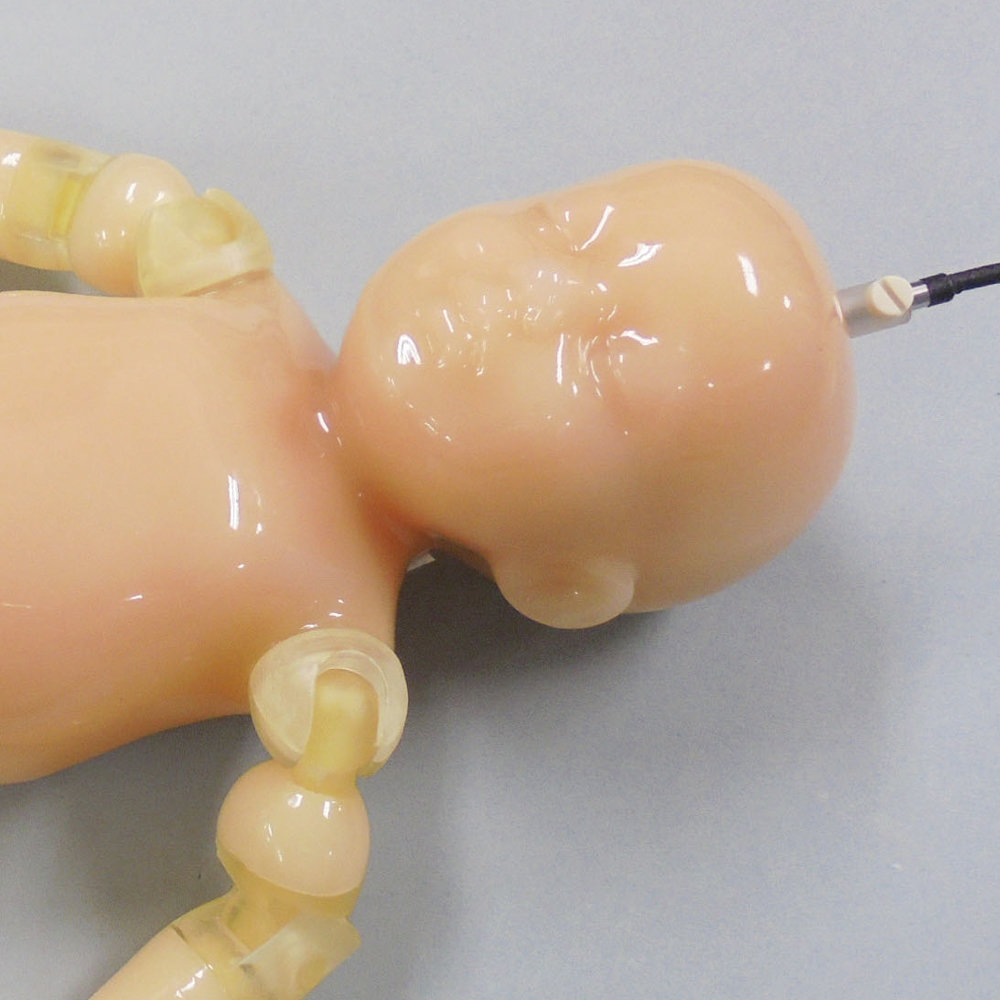

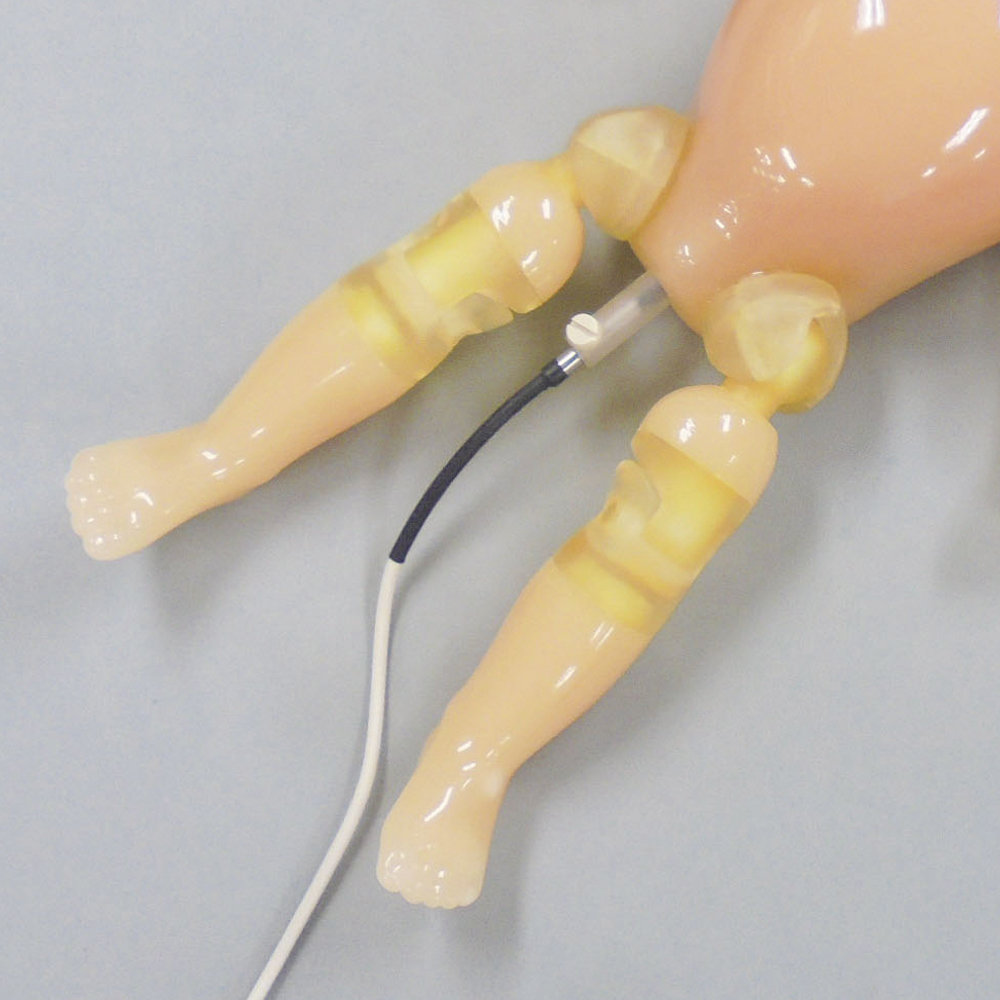

4. A hole for an ion chamber
Training skills / Applications CT and plain X-ray / Dosimetry / Autopsy Imaging / Positioning

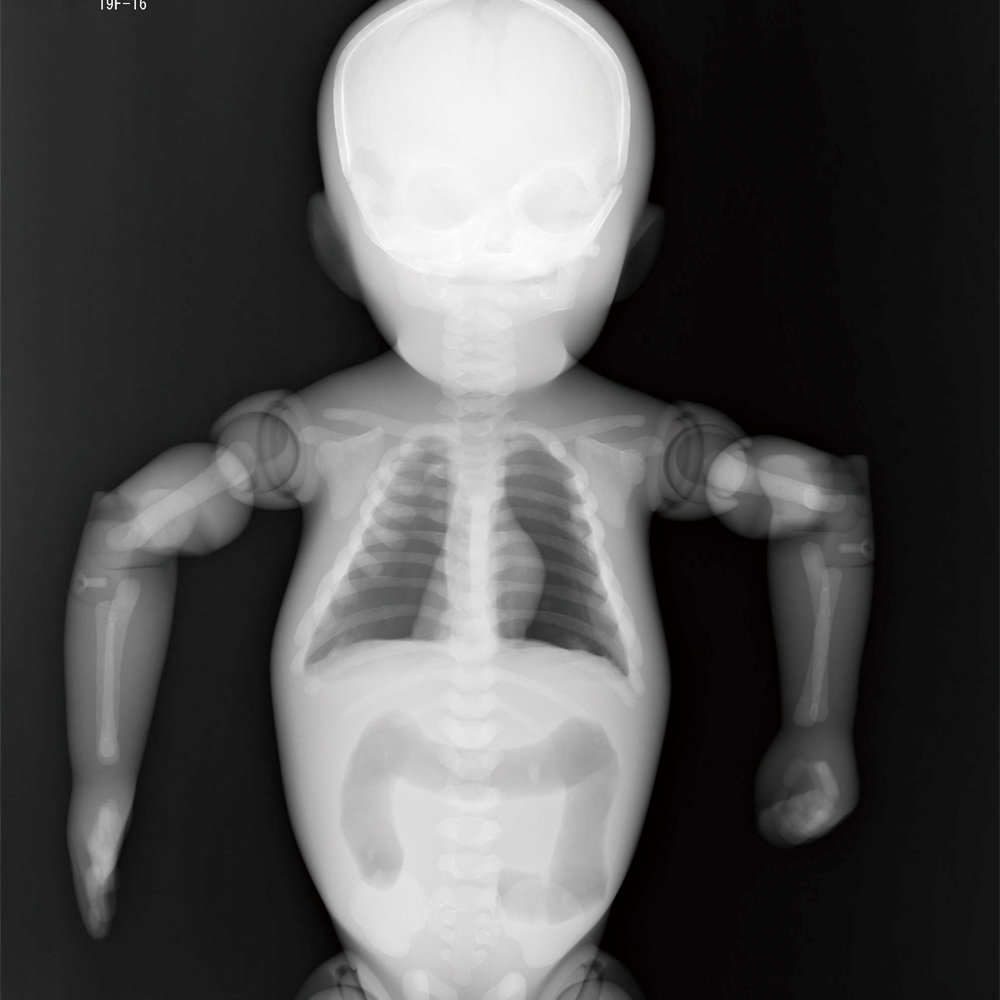

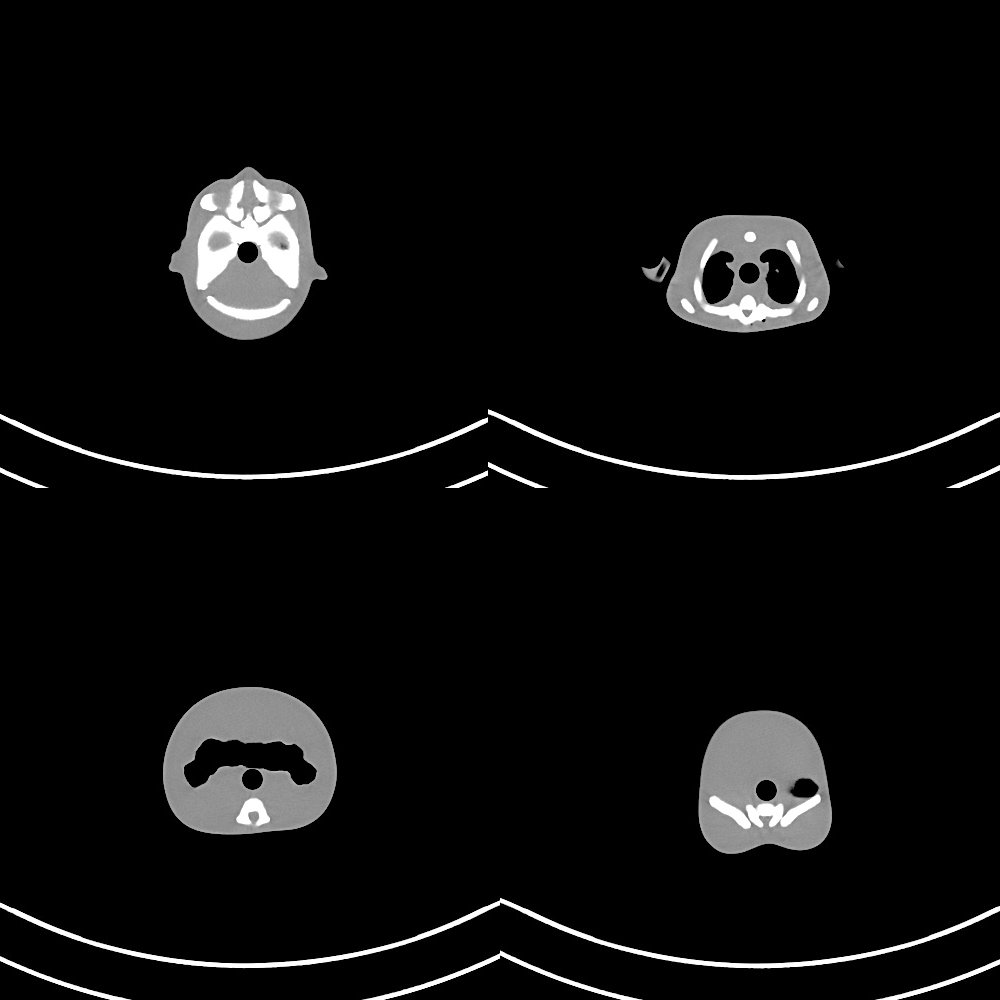

Set includes 1 newborn whole body phantom / 1 set of sample X-ray data (DVD) / 1 storage case / manual
Height (approx.) 53cm / 20.8in
Packing size (approx.) W57 x D44 x H29cm / W22.4 x D17.3 x H11.4in
Weight (approx.) 3.5kg / 7.7lb
Packing weight (approx.) 8kg / 17.6lb
Materials Soft tissue: urethane based resin (density: 1.06)
Synthetic bone: epoxy resin (density: 1.31) / *Phantom has no metal parts or liquid structure
Related products PH-50 Newborn Whole Boday Phantom
PH-2C Pediatric Whole Boday Phantom "PBU-70"
PH-2D Bone Fracture Pediatric Phantom "PBU-70B"
ANATOMY skull / spine/ clavicles / scapulae / ribs / humerus / radius / ulnae / bones of hands / femora / tibiae / fibula / bones of foot / pelvis / lungs / mediastinum / colon
Update July 28, 2020
