PH-2C

Pediatric Whole Body Phantom "PBU-70"

Start

41350-300 storage case excl. Quote
41350-400 with storage cases Quote

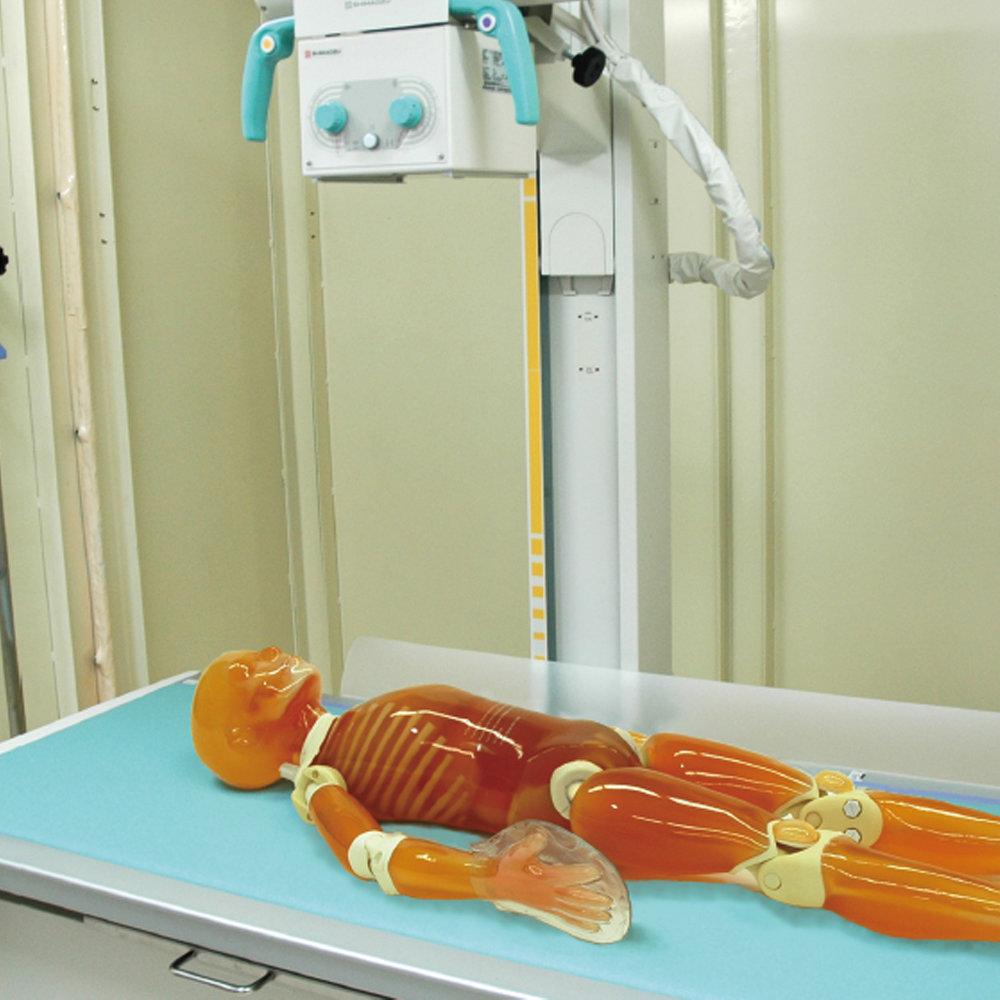

This phantom representing a five-year-old child is easy to position, and provides complete bone images for every joint

Features 1. Radiology Absorption and HU number approximate to human body.
2. Main joints have close-to human articulation.
3. Phantom can be disassembled into 10 individual parts

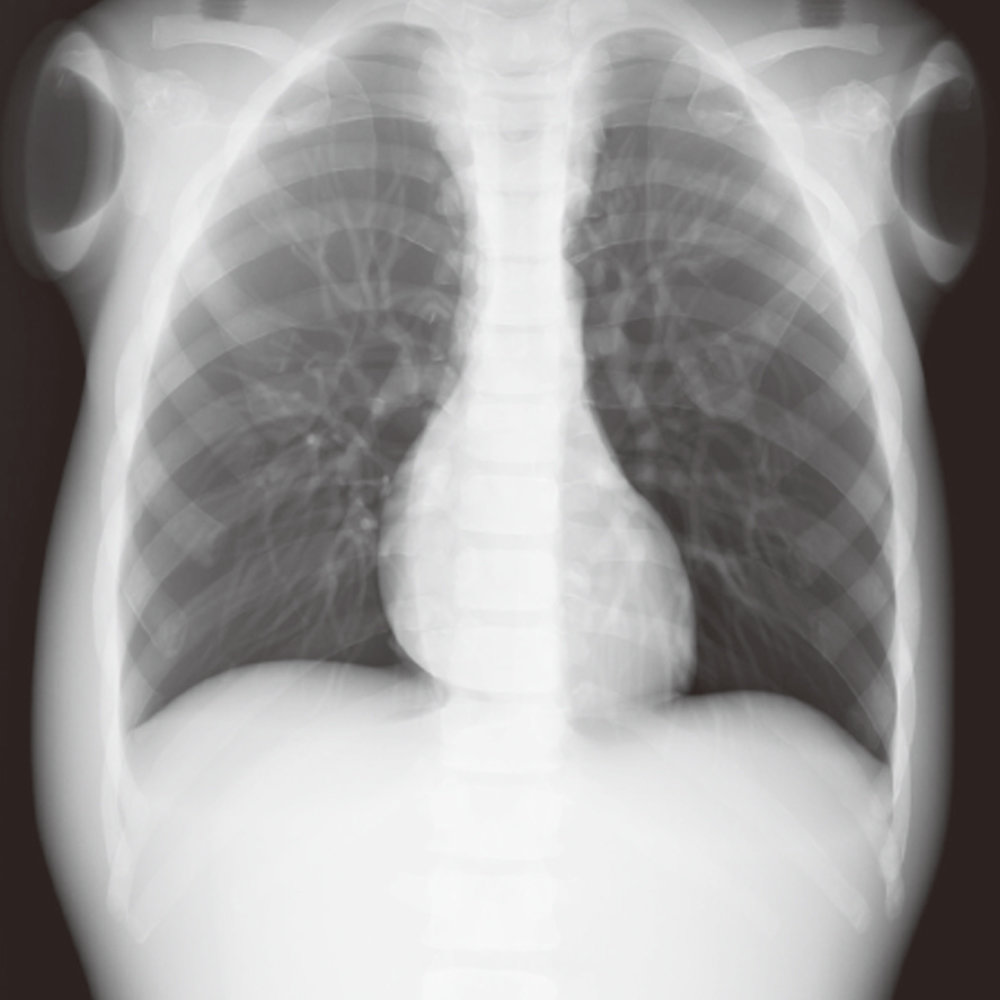

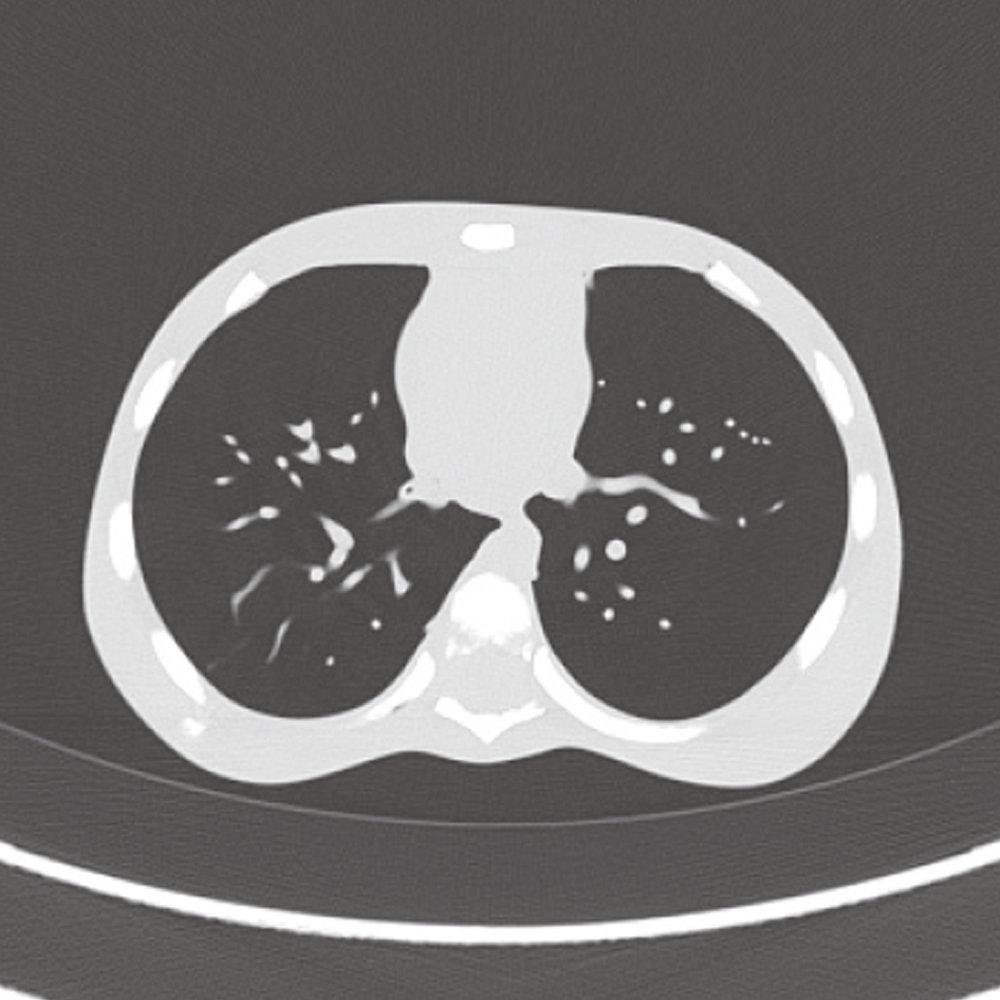

Training skills / Applications Plain X-ray / CT /Basic patient positioning
Set includes 1 pediatric whole body phantom / 1 head supporter / 1 hand fixture belt / 1 screw driver / 1 set of sample X-ray data(DVD) / manual
Height (approx.) 110cm / 43.3inch
Packing size (approx.) W86 x D60 x H32cm / W33.9 x D23.6 x H12.6inch
Weight (approx.) 20kg / 44lb
Packing weight (approx.) 25kg /49lb
Materials Soft tissue: urethane based resin (specific gravity: 1.06)
Synthetic bone: epoxy resin (specific gravity: 1.31)
*Phantom has no metal parts or liquid structure
Replacement parts 41363-080 storage case for PH2C/2D
Publication references Söderberg, M., & La, S. (2013). Evaluation of adaptation strengths of CARE Dose 4D in pediatric CT. SPIE Medical Imaging, 9-14.
doi:10.1117/12.2001694
Anatomy skull / spine/ clavicles / scapulae / ribs / sternum / coxal
bones / humerus / antebrachial bone / bones of hand /
femur / patella / lower leg bone / bones of foot
PBU-series https://www.youtube.com/watch?v=pQIeOjjrpqc
Update July 28, 2020
